TM-H5000
II
IIII
II
series
Specification
(STANDARD)
NEXT
6
NOTE:
· When using multi-ply paper that consists of an original and three copies, be sure to
print with a 9 ´ 9 font. If a 7 ´ 9 font is used, some characters on some of the copies
may not be readable.
· In the same way, when printing Kanji characters which consist of many lines, be
sure to consider that some of characters may not be readable regardless of number
of the copies.
5) Notes on slip paper
· The slip paper must be flat, without curls or wrinkles, especially at the top edges.
Otherwise, the paper may rub against the ribbon and become dirty.
· There must be no glue on the bottom edge of slip paper. Choose slip paper carefully
when the glue is on the right or top edge, since paper feeding and insertion are affected
by gluing conditions (e.g., glue quality, method, and length) and glue location (refer to
Figure 1.1.2). Be especially careful when slip paper is wide and has the glue on the left
edge, since skew may occur.
· Since the slip insertion sensor uses a photo sensor, do not use paper that has holes at
the sensor position, or is translucent (refer to Figure 1.1.4).
· Since the slip ejection sensor uses a reflective photo sensor and it detects from the back
of slip paper, do not use paper that has holes or dark portions with low reflection (less
than 40% reflection) at the sensor position (refer to Figure 1.1.5).
· Use thinner paper (N30 or equivalent) between the top and bottom sheets of multi-ply
paper. If thick paper is used, the copy capability is lowered.
Glued ponion
Paper feed direction

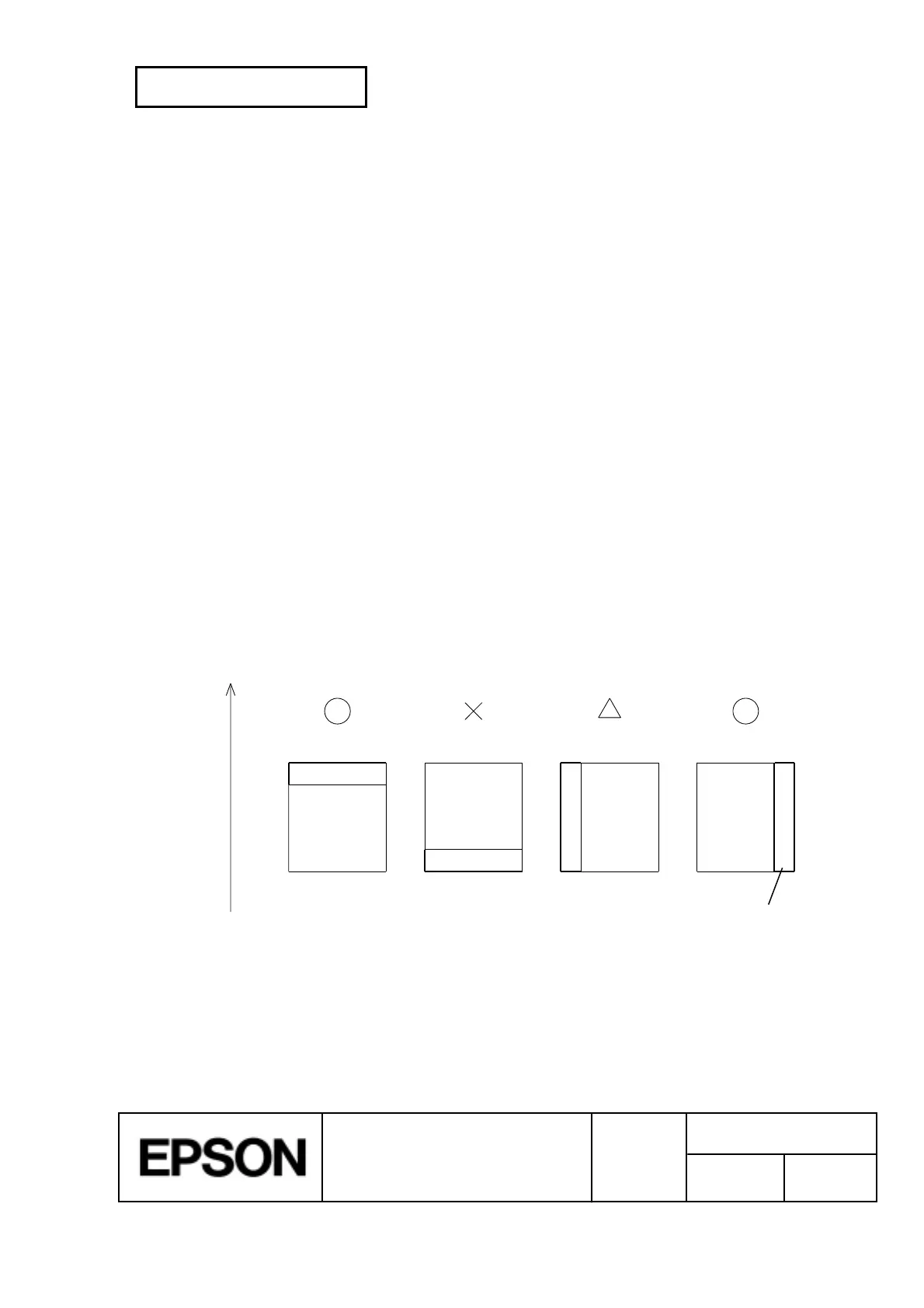

Figure 1.1.2 Slip Paper Glued Area
