System manual CECX / CPU module

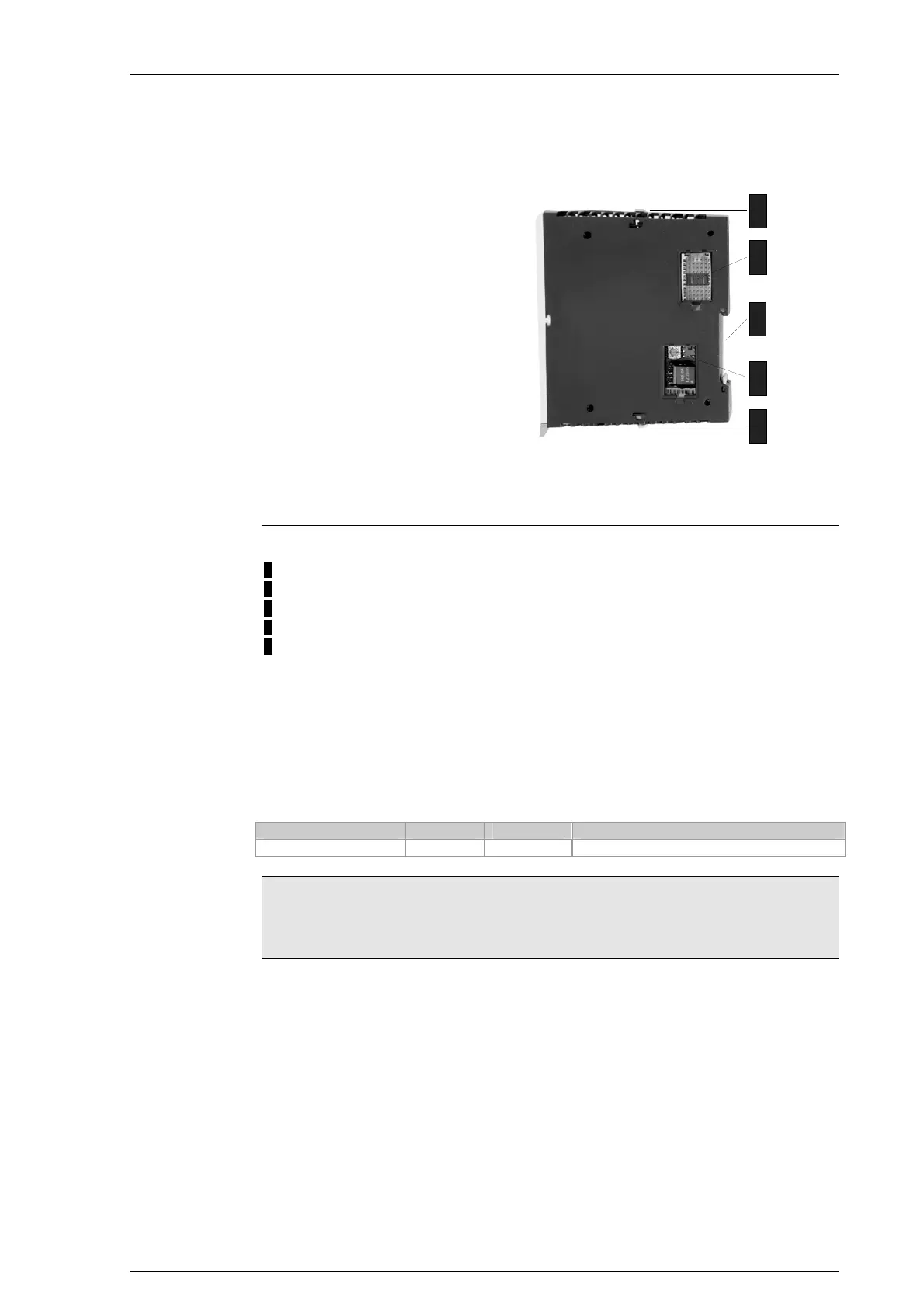

14.3.2 Side view
2
1
3
4
5
Locking lever
unlocking   locking
Side view
1.... Upper snap-on fixture for mechanical connection of modules
2.... K-Bus plug
3.... Recess for mounting rail
4.... Address switch
5.... Lower snap-on fixture for mechanical connection of modules
14.3.3 Accessories
14.3.3.1 Connector strip
A 2-pole female connector is used for the power supply of the CPU module.
Female connector Color Number Order no. Weidmüller
2-pole sw 1 BLZF 5.08/2 SN SW - 170769
Information
Larger terminal blocks may be used to group multiple signals. The current
carrying capacity of the terminal block is thus, however, reduced (according
to derating curve of the terminal block manufacturer.)
The technical data for the terminals are contained in the technical data
sheet of the manufacturer of the female connectors.
CECX-II 14-5
