The Festo_PartDetector.lib library
5
1.4 Visualisations
1.4.1 General
All visualisations are linked to the PartDetector module instances using placeholders. The names of all
visualisations begin with VISU_PD_xxx.

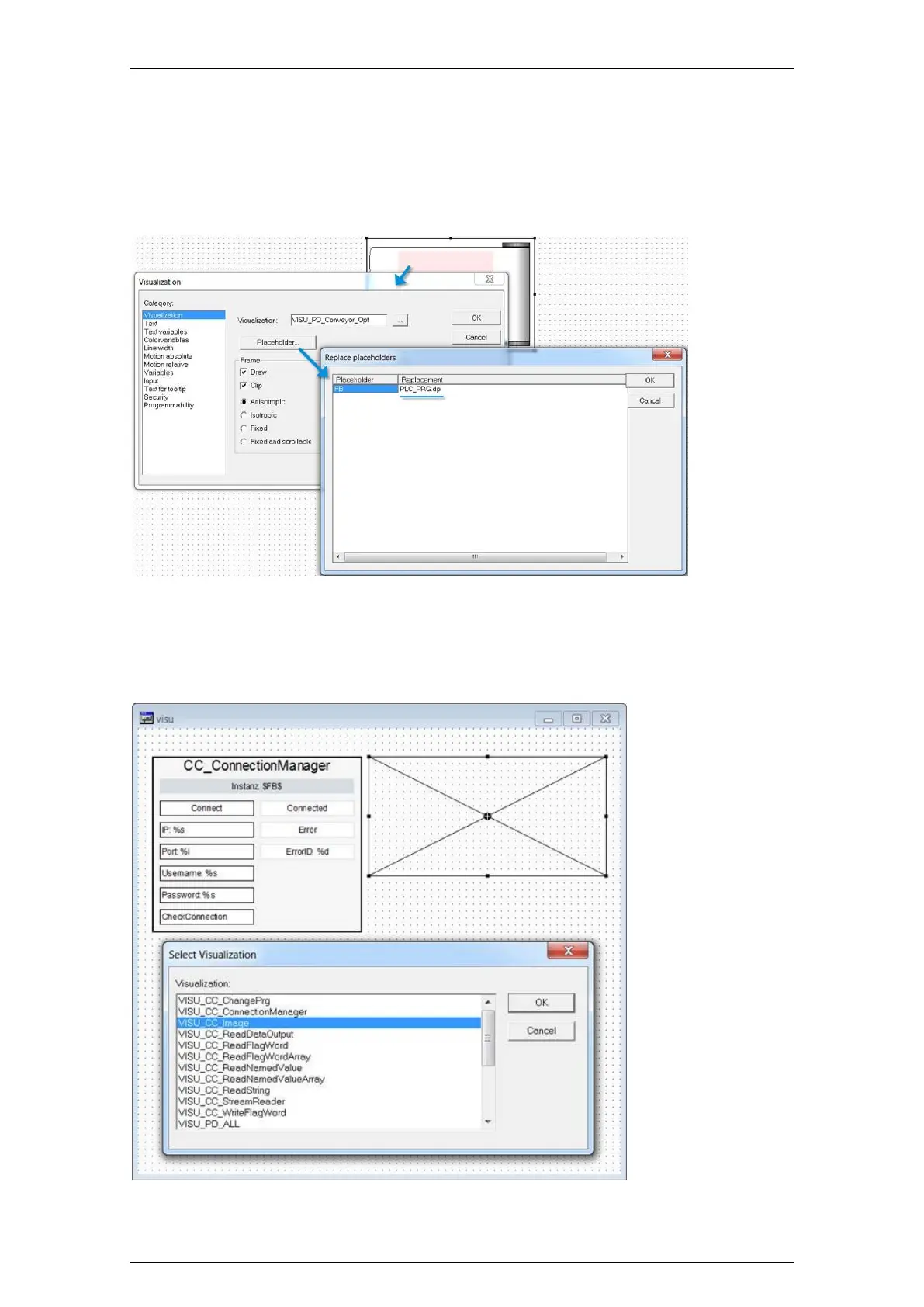

Figure: Linking the visualisation
1.4.2 Single blocks
The module visualisation is split into a number of single blocks. This means that you have the option of
using only the block that is of interest to you in your own project. The single blocks are located in the
"SingleBlocks" visualisation folder of the library.
Figure: Selecting the visualisation
