System manual CECX / Bus link module CECX-B-CO
34.3 Description of the module
The CECX-B-CO is a bus link module of the CECX modular control system.
It is used to operate CECX modules as decentralized I/O clusters at other
controls.
The CECX-B-CO is connected with a host control via CAN. A maximum of
12 modules can be supplied and operated.
34.3.1 Front view

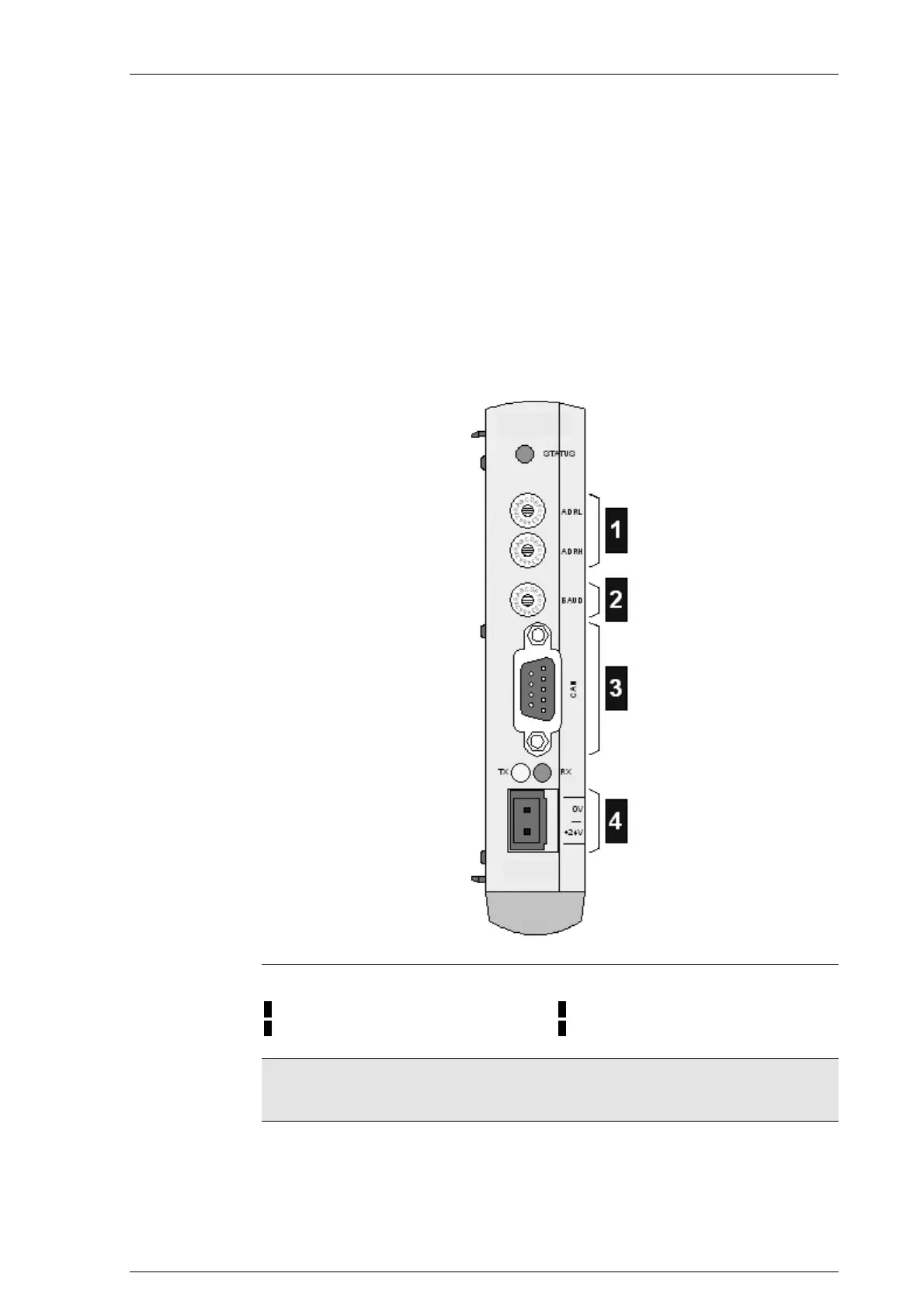

CECX-B-CO front view
1 Address switch 2 Baud rate switch
3 CAN interface 4 Voltage supply
Information
The type plate is stored on the module in an EEPROM and
can be read out by the application.
CECX-II 34-3
