from the DHCP server.
Answer on find requests When selected: the control answers to search requests.
See Search Network and Add PLC.
Synchronize RTC with PC When selected: After confirmation with OK the selected
control takes over the date and time from the PC.
Reboot on OK When selected: A reboot is carried out after OK, to take
over the settings.
*) Examples and information on different network configurations: See system manual of the control (start-
up, establishing Ethernet connection to PC/control).
Set as active PLC
Takes over the network settings of the selected control (PLC) in the communication settings of CoDeSys.
Control configuration
The settings of the target system are described in the control configuration. Entered here are the control
components used and how they are configured.
Prerequisites
 A target system of the CECX series must be installed with Install Target.
 When creating a new project the target system must be selected in Target system settings under
configuration.
The settings for Target platform, Memory partioning, General, Network functions and Visualization
are preset and must not be changed.
That makes the target system available under resources -> control configuration for the configuration
entries.
Adding / configuring a module
Further modules can be added by plugging in at the side on the bus connection of the central processor
module. Each hardware module that is added must be entered in the control configuration of CoDeSys.
Select Control configuration under Resources..

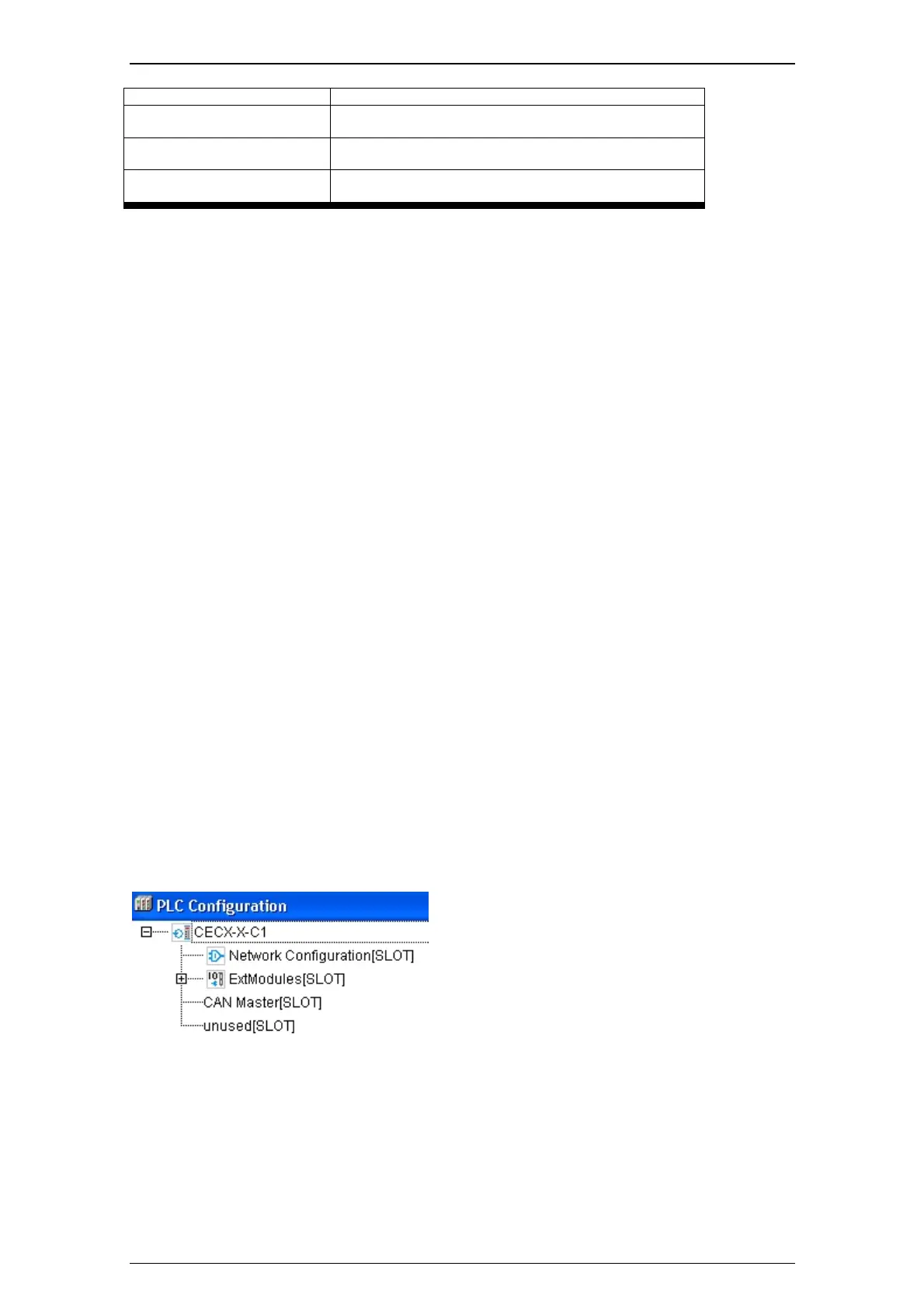

For production versions CECX-C1 and CECX-M1 different windows are displayed for the PLC
configurations.
CECX-I 13
