CECX modular control system
affected by the short circuit.

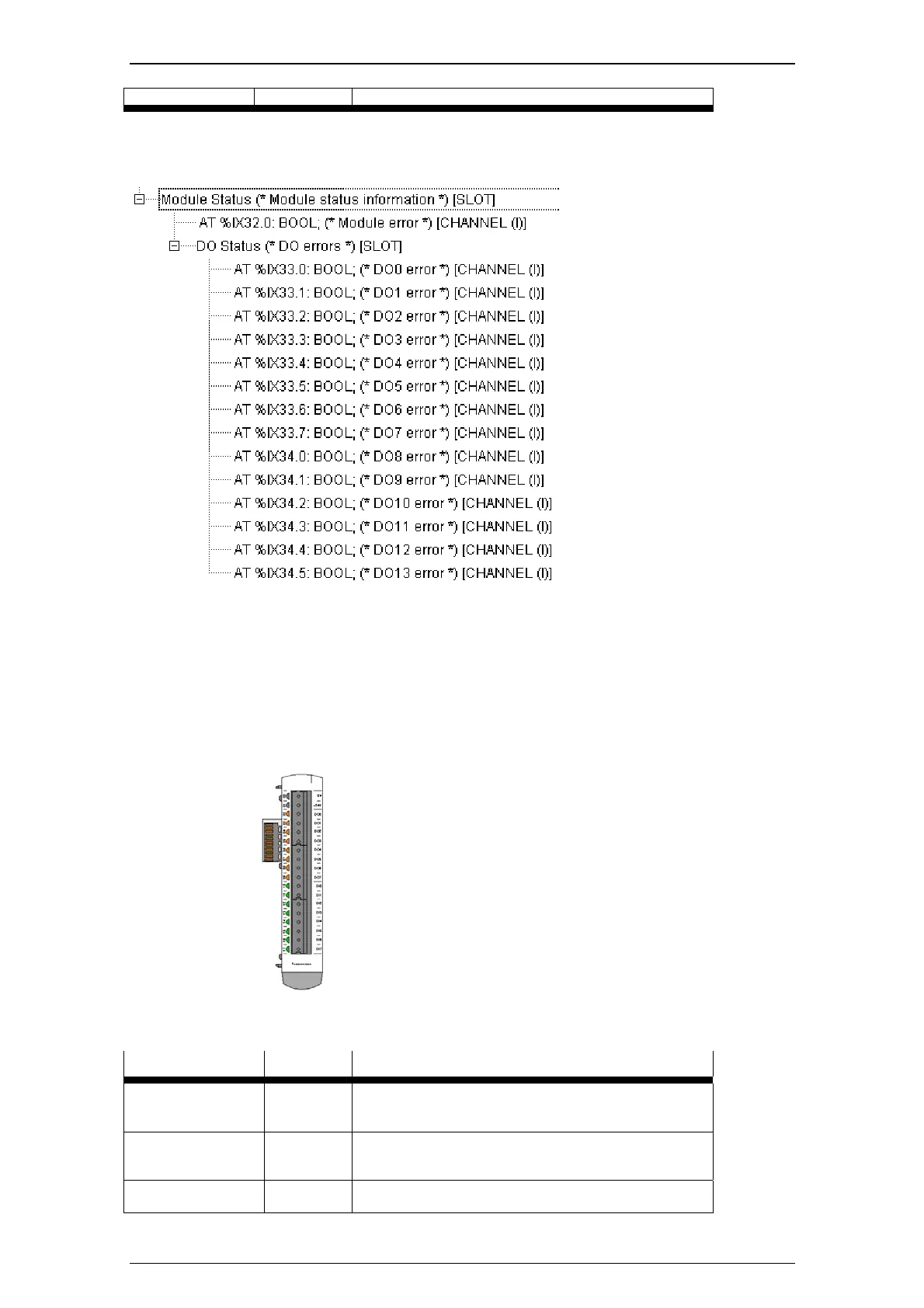

Status values as diagnosis information
The following status values are created for this module (example):
Possible error states (when status = TRUE)
Module status: module is defective or missing.
DO status: Short circuit of the outputs.
CECX-D-8E8A-NP-2
Digital input/output module
ï‚· 8 digital inputs sink, of which 2 are interruptible
ï‚· 8 digital outputs 2A source at 50% coincidence,
short-circuit protected, overload protection,
short-circuit detection, group cut-off
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
short circuit scan None The short-circuit detection deactivates all active outputs
of the output group.
CECX-I 18
