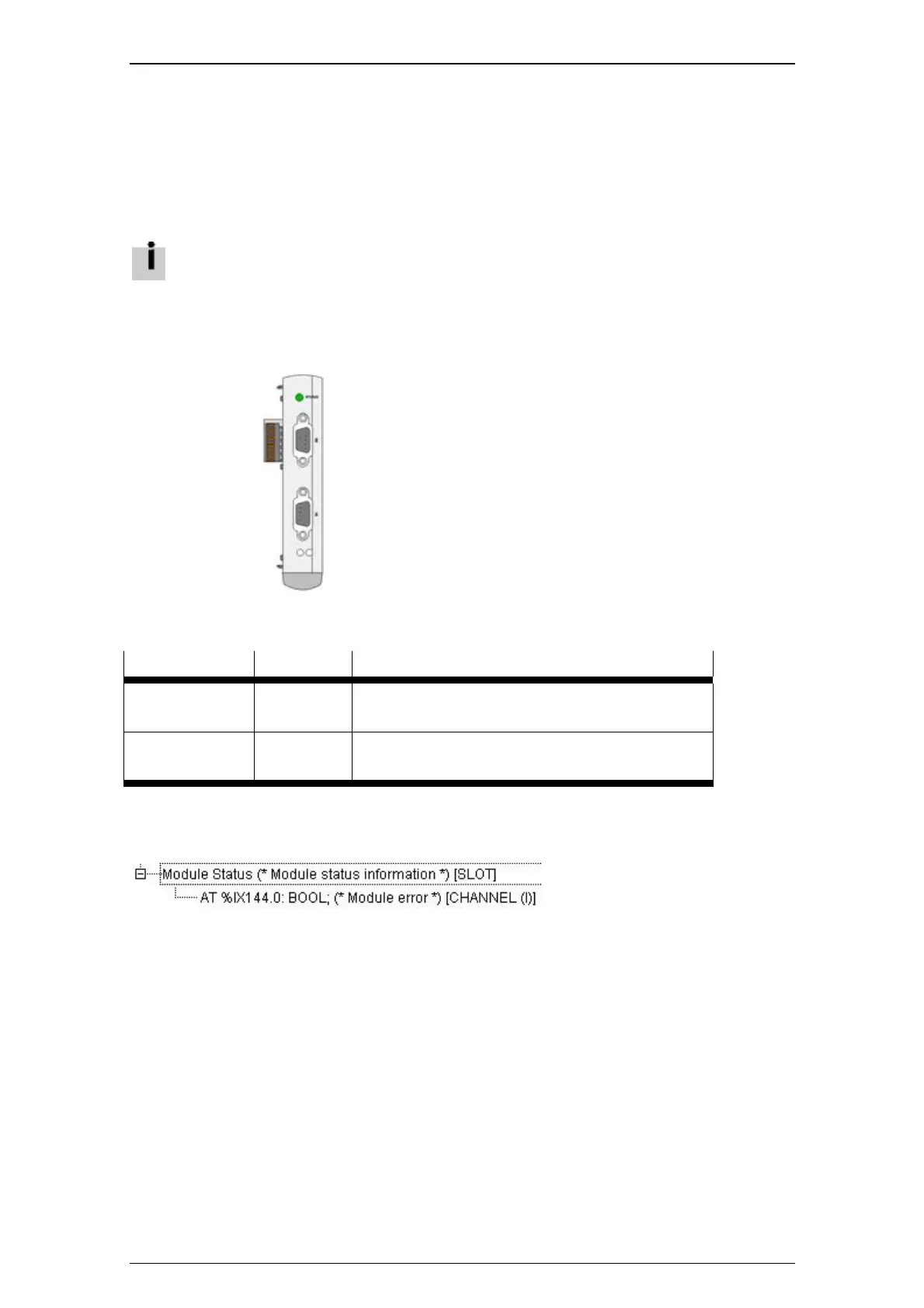

CECX modular control system
Possible error states (when status = TRUE)
Module status: module is defective or missing.
INC status: sensor failure, short circuit.
DI status: no error message
When parameter INC0 - encoder type (or INC1 - encoder type) is set on RS-422 and no
incremental encoder has been connected to the encoder input, the error state "INC Status"
switches to TRUE. Encoder inputs not used should therefore be configured as 24 V type.
CECX-S-2S1
Serial interface module
ï‚· 2 RS-232-C
Modul parameters
Name Value Description
address auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
Status values as diagnosis information
The following status values are created for this module (example):
Possible error states (when status = TRUE)
Module status: module is defective or missing.
Additional information: See online help section titled Target system - Festo CECX (CECX-S-2S1).
CECX-I 31
