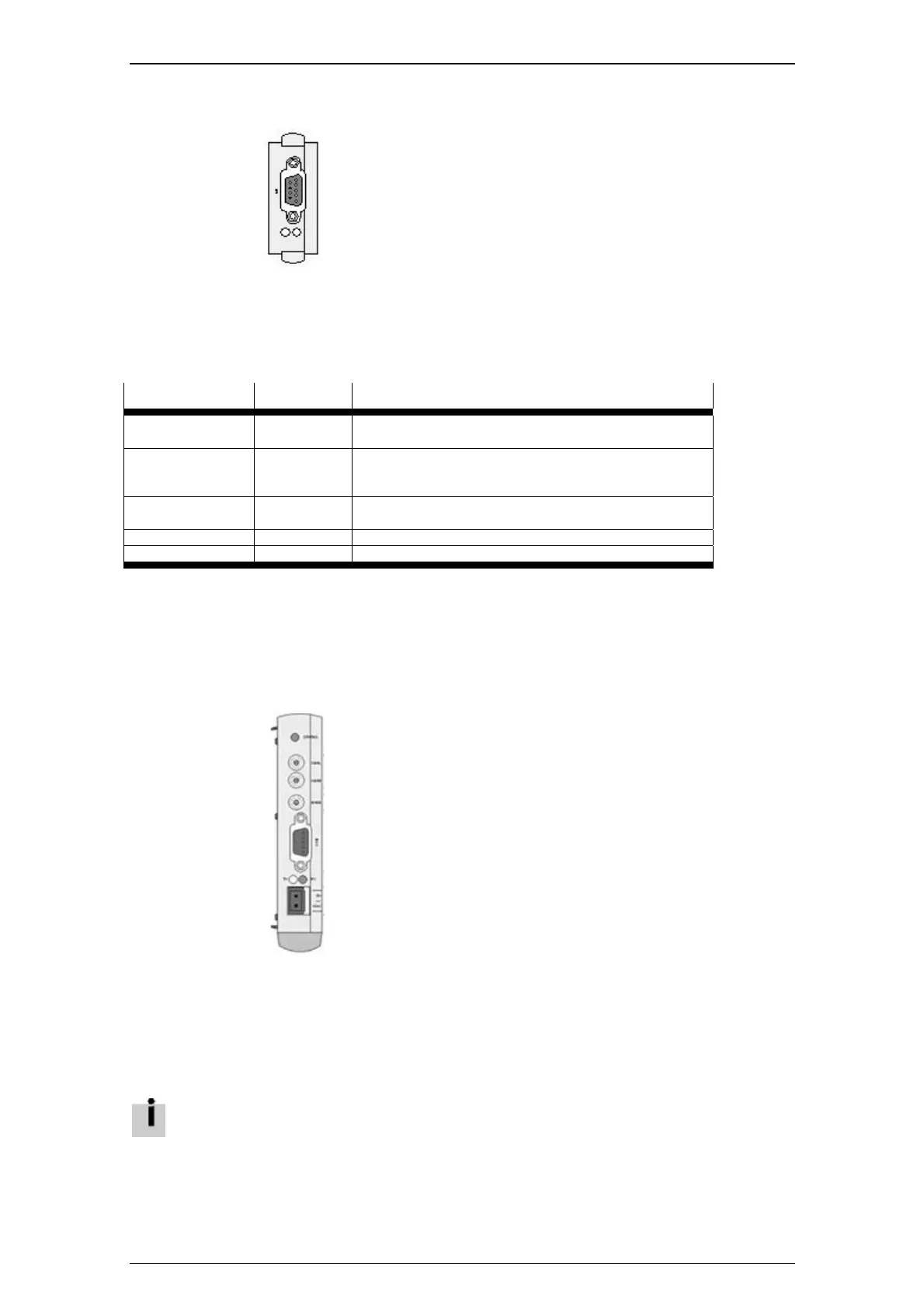

CECX modular control system
CECX-C-S1, CECX-S-S4
Serial option module:
ï‚· CECX-C-S1: RS-232-C,
ï‚· CECX-S-S4: RS-485/422
Modul parameters
These modules are configured as CoDeSys interface in the PLC configuration via Communication
Parameters, SIO Config. For the application, these interfaces are useable via the functions from the
CoDeSys SysLib Com.
Name Values Description
Port COM2 to
COM8
See chapter "Operation of interfaces, Serial interfaces".
baud rate From 4800
to 115000
Baud
Data transmission rate.
parity None, odd,
even
Parity
data bits 8 Number of data bits.
stop bits 0, 1 oder 2 Number of stop bits.
See also online help to the target system CECX under: Start-up of CoDeSys and control -> Establishing
PC/Control connection -> Serial connection.
CECX-B-CO
CANOpen bus link module:
ï‚· for up to 12 add-on modules.
The CECX-B-CO is a CANOpen bus link module, and may be connected as slave module to each CAN
master module.
Set the values of the CAN parameters as desired (baudrate according to length of data line, other
parameters adequate to the settings at the CAN modules).
When configuring the CAN master, consider that the parameter „Support DSP301,V4.01 and
DSP306“ is selected. If this option is set, then the CAN module selection is available.
CECX-I 33
