System manual CECX / SSI Interface module CECX-C-2G1
CECX-II 29-9
29.6 Configuration
29.6.1 General information
A CECX-system needs data for the configuration of system performance,
its I/O-devices and interfaces. The system reads this data during the start-
up operation and allocates them to its components and devices.
Configuration data is created by included configuration tools.
29.6.2 Setting the address
The modules are addressed via the address switch.
It is possible to connect a maximum of
z 4 only CECX-C-2G1 to a CPU module
(permissible address switch positions: 0 – 3),
z 2 only CECX-C-2G1 to a CECX-B-CO
(permissible address switch positions: 0 – 1)
Information
If an inadmissible address is set, the module will not be recognized on the
K-Bus.
The address switch is located on the right side and underneath the lower
cover. The K-Bus plug is located underneath the upper cover.

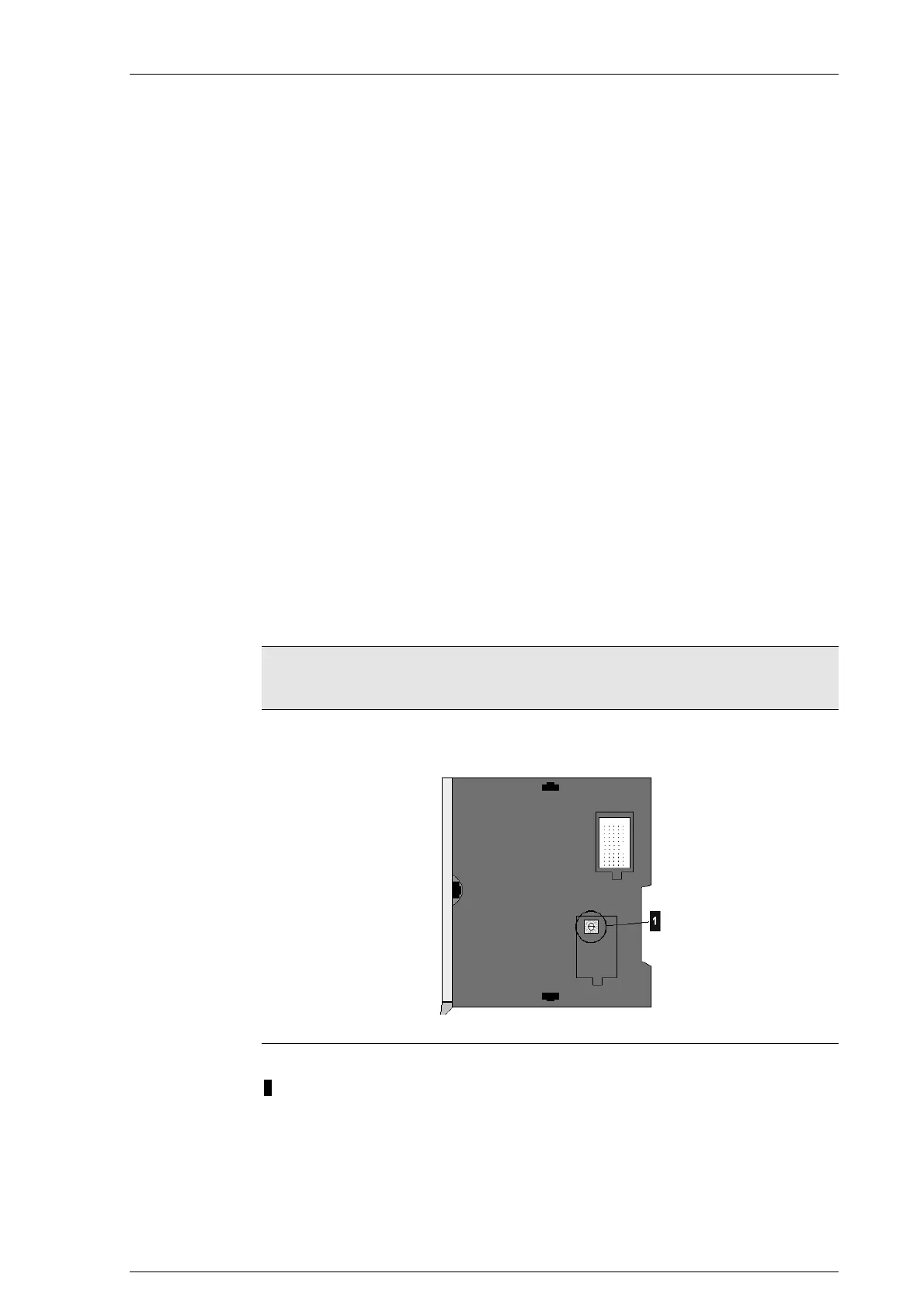

Position of the address switch
1.... Address switch
