System manual CECX / Digital input/output module CECX-D-6E8A-PN-2
CECX-II 18-12
18.5 Configuration
18.5.1 General information
A CECX-system needs data for the configuration of system performance,
its I/O-devices and interfaces. The system reads this data during the start-
up operation and allocates them to its components and devices.
Configuration data is created by included configuration tools.
18.5.2 Setting the address
The modules are addressed via the address switch. A maximum of 12
modules of the same type can be distinguished on one line.
The address switch is located on the right side underneath the lower cover.
The K-Bus plug is located underneath the upper cover.
0
4
8
C
1
2
3
5
6
7
9
A
B
D
E
F

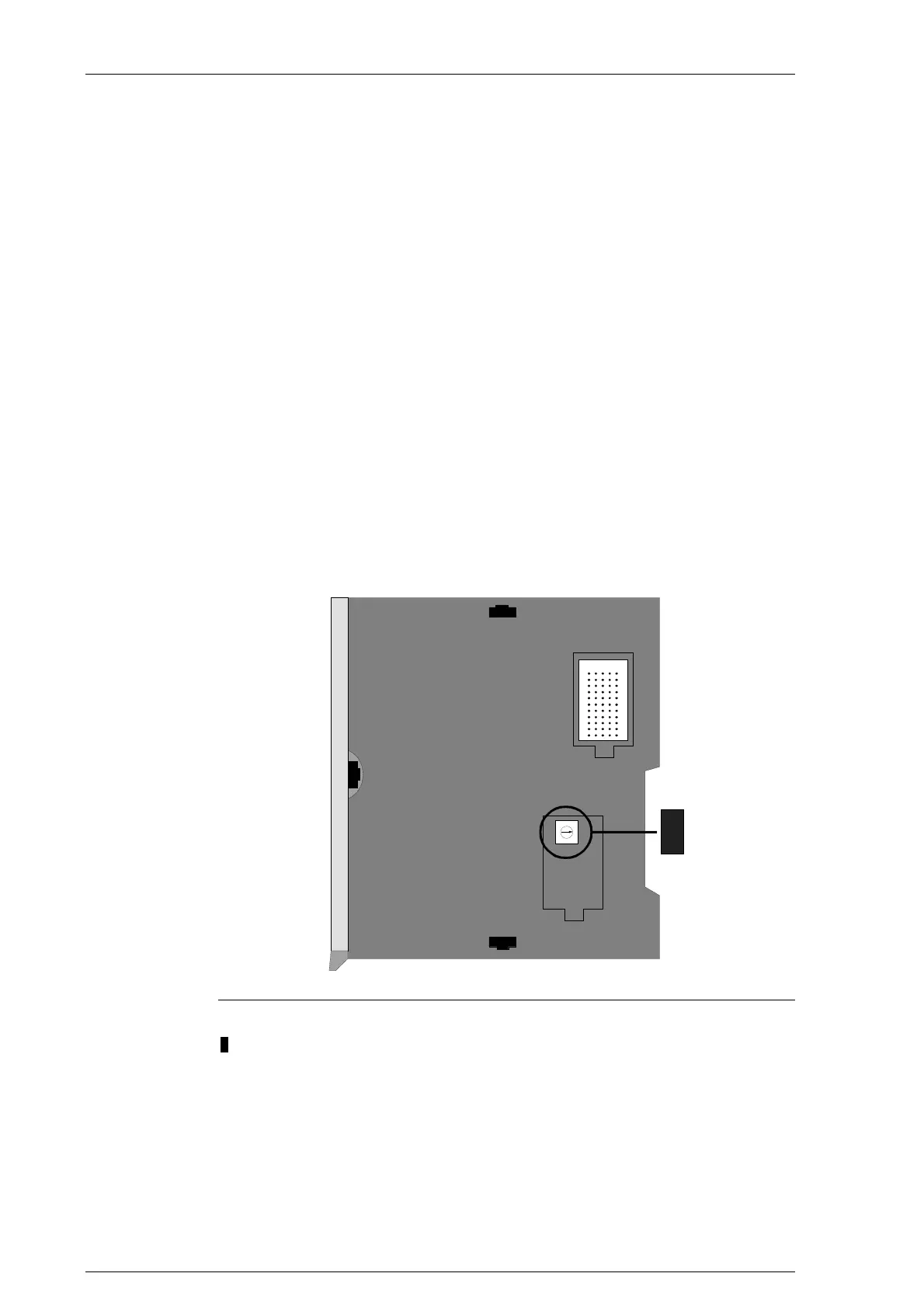

1
Position of the address switch
1 ....Address switch
On leaving the factory all modules are set to address 0 and both covers are
closed.
