Festo CECX-X-C1 Series User Manual

CECX modular control system

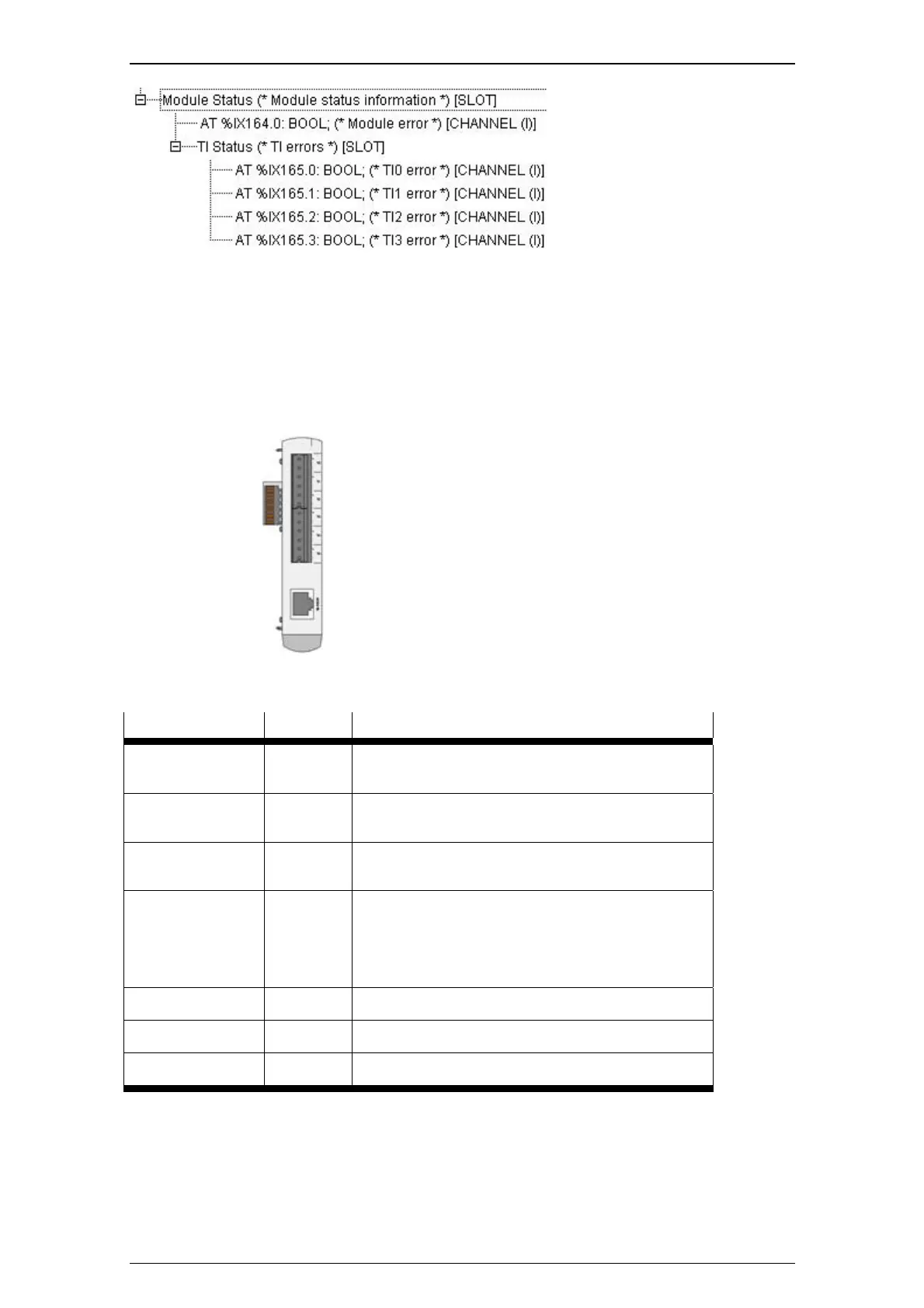

Possible error states (when status = TRUE)
Module status: module is defective or missing.
TI status: sensor failure detection
CECX-E-6E-T-P2
Temperature measurement module
 6 temperature inputs for thermocouple type J, K,
L.
 Cold junction compensation internal
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
operation mode internal
reference
The compensation of the terminal temperature is
achieved with an internal temperature measurement
sensor. *)
microvolt is applied if the terminal temperature is measured with
a semi-conductor temperature sensor (KTY type) with a
nominal resistance of 2,000 W. This semi-conductor
temperature sensor is connected to an analog input.
The cold junction compensation and the linearization
must be realized in the user program. *)
TI0 - TI5: sensor
type
J For thermocouple type J (Fe-CuNi) according to IEC
548-1 (-100 °C to 700 °C).
K For thermocouple type K (NiCr-Ni) according to IEC
548-1 (-100 °C to 1000 °C).
L For thermocouple type L (Fe-CuNi) according to DIN
43710/1977 (-100 °C to +700 °C).
*) See online help section titled Target system - Festo CECX (hardware configuring,module CECX-E-6E-T-
P2, chapter Functional description).
Status values as diagnosis information
CECX-I 26
