CECX modular control system

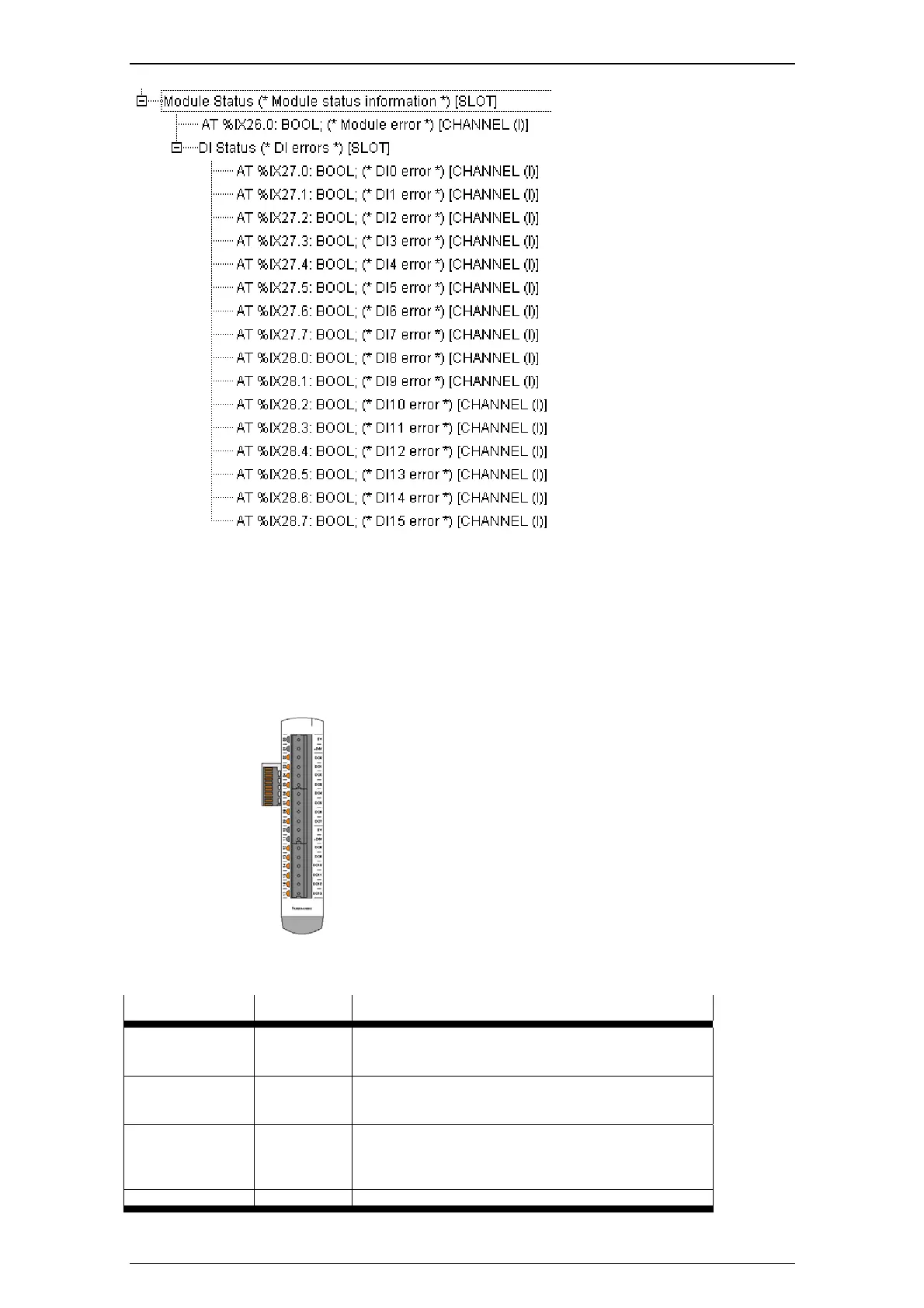

Possible error states (when status = TRUE)
Module status: module is defective or missing.
DI status: no error message
CECX-D-14A-2
Digital output module
ï‚· 14 digital output modules 2A at 50%
coincidence, divided into 2 groups (6 and 8
outputs), short-circuit protected, overload
protection, short-circuit detection, group cut-off.
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
DO0..DO7: short
circuit scan,
DO8..DO13: short
circuit scan
None This module has two output groups with separate
voltage supply. The short-circuit detection switches off
all active outputs of the output group in which the short
circuit occurred.
Scan The short-circuit detection reactivates the outputs not
CECX-I 17
