CECX modular control system
The "auto" setting and the specific assignment of addresses should not be mixed in an
control system.

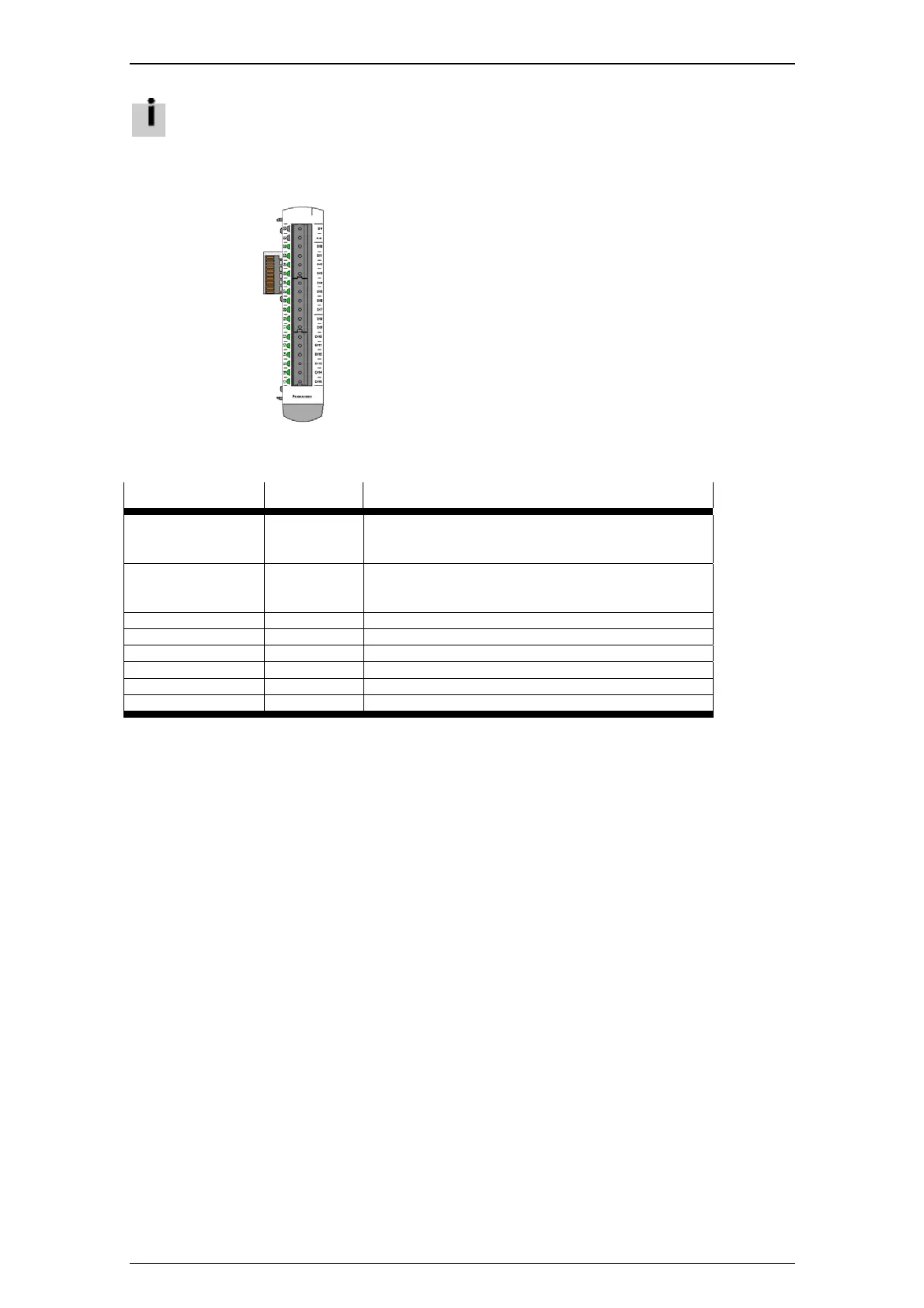

CECX-D-16E
Digital input module
ï‚· 16 digital inputs of type 1
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See
chapter "Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the
address switch on the module.
DI0 - DI15: despike None No input signal debouncing.
100 ms Debouncing time 100 ms.
DI0 - DI1: Interrupt None No edge evaluation.
Rising edge Signal change at rising edge. *)
Falling edge Signal change at falling edge. *)
Both Signal change at every signal edge. *)
*) The two inputs DI0 and DI1 can be interrupted. i.e. they can trigger system events when corresponding
module parameters have been set. They can be evaluated with the functions of the 'EventData.lib" library.
Status values as diagnosis information
The following status values are created for this module (example):
CECX-I 16
