System manual CECX / Analog input/output module CECX-A-4E4A-A
CECX-II 22-3
22.3 Description of the module
The CECX-A-4E4A-A is an analog input/output module with 4 analog power
inputs and 4 analog power outputs.
22.3.1 Front view
000102030405060708091011121314151617
NC
GND
GND
GND
+
-
AI0
+
-
AI1
+
-
AI2
+
-
AI3
AO0
AO1
GND
AO2
AO3
GND
2
1

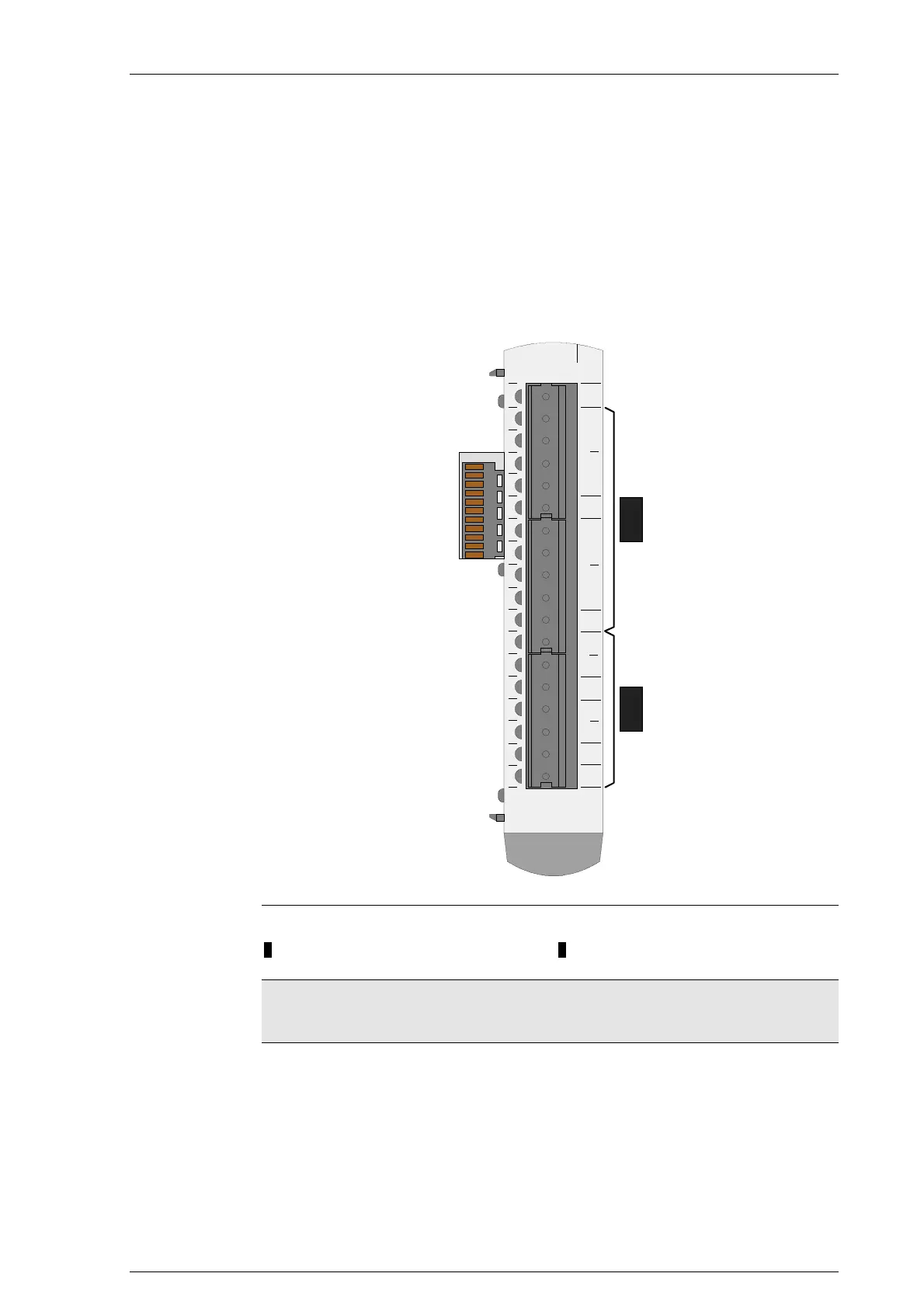

CECX-A-4E4A-A front view
1.... 4 analog power inputs 2.....4 analog power outputs
Information
The type plate is stored on the module in an EEPROM and can be read out
by the application.
