19.4 Connections and wiring

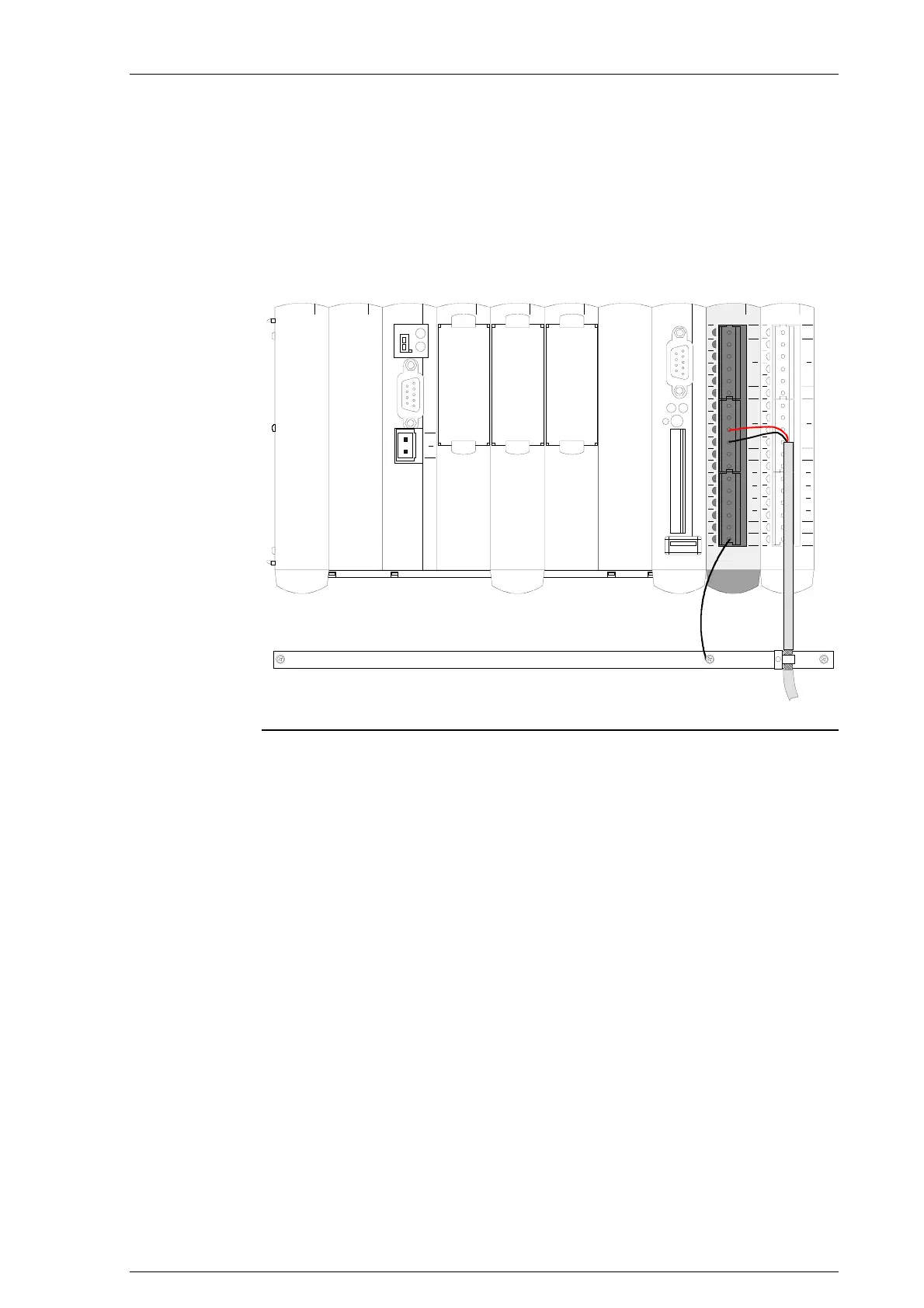

19.4.1 Connection of the shield-rail for analog signals
000102030405060708091011121314151617
UREF
GND
GND
+
-
AI0
+
-
AI1
+
-
AI2
+
-
AI3
NC
NC
NC
NC
NC
GND
GND
Pxxxxx-xxxxx
000102030405060708091011121314151617
UREF
GND
GND
+
-
AI0
+
-
AI1
+
-
AI2
+
-
AI3
NC
NC
NC
NC
NC
GND
GND
Pxxxxx-xxxxx
GND - connection
against 50 Hz field,
length: max. 1 m
shield rail
STATCTRL
DIAG
SI0
0V
+24V
CAN0
RXTX
COMPACT FLASH
USB
ETHCAN1SI1
Connection of the shield-rail for analog signals
19.4.1.1 Notes on wiring the analog lines
• Analog lines and reference voltage must be connected with a
shielded cable.
• The shield rail must be connected to the GND terminal at one point.
• The shield must be placed on the shield rail as shown above.
• To attain optimum interference immunity, analog lines and reference
voltage should not be laid out parallel to strong interfering lines (e.g.
lines of converters for motors).
