CECX modular control system

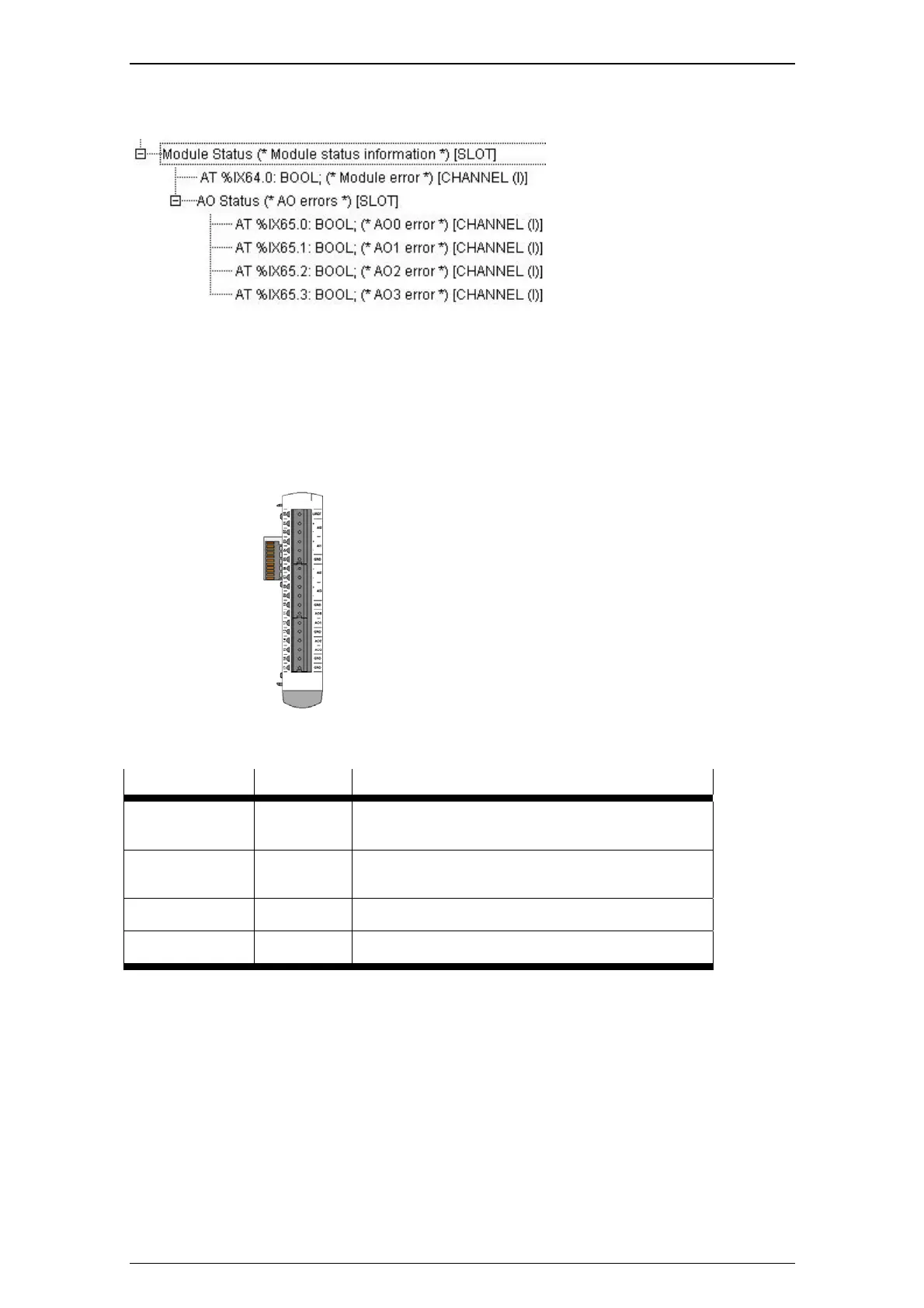

Status values as diagnosis information
The following status values are created for this module (example):
Possible error states (when status = TRUE)
Module status: module is defective or missing.
AO status: no error message
CECX-A-4E4A-V
Analog input/output module
ï‚· 4 analog inputs universal +/- 10V, resolution: 14
Bit, sensor failure detection
ï‚· 4 analog outputs +/- 10V, resolution: 12 Bit
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
AI0 - AI3:
operating mode
-10 ... +10 V Operating mode with differential input circuit.
0...URef Single-ended input circuit, calibration standardized to
URef.
Status values as diagnosis information
The following status values are created for this module (example):
CECX-I 23
