System manual CECX / Digital input/output module CECX-D-6E8A-PN-2
CECX-II 18-3
18.3 Description of the module
The CECX-D-6E8A-PN-2 constitutes a digital input/output module for use in
the CECX modular control system.
18.3.1 Front view
000102030405060708091011121314151617
0V
+24V
DO0
DO1
DO2
DO3
DO4
DO5
DO6
DO7
0V
+24V
DI0
DI1
DI2
DI3
DI4
DI5
2
1
4
3

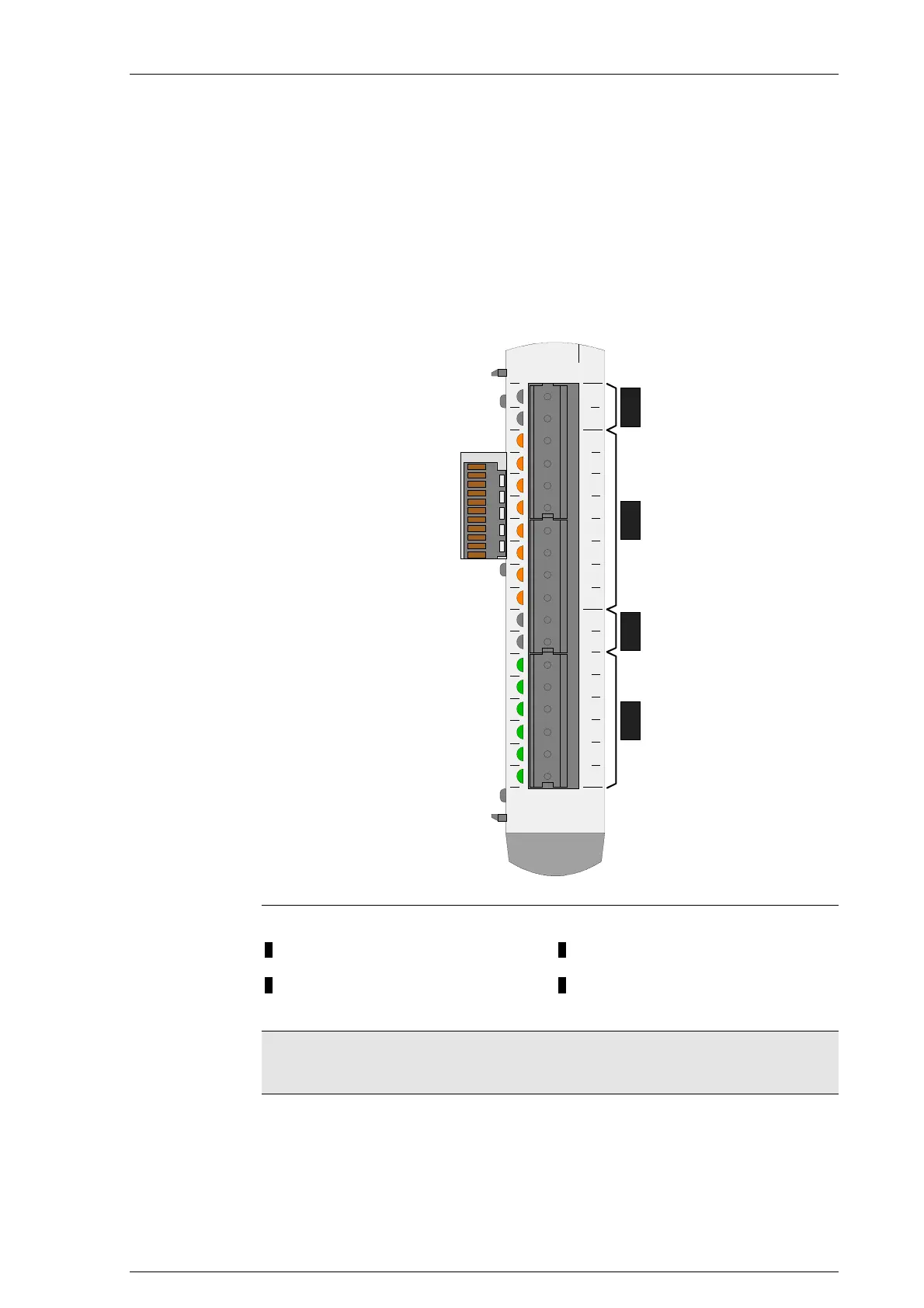

CECX-D-6E8A-PN-2 front view
1.... Power supply of the
digital outputs
2.....8 digital outputs
3.... Power supply of the
digital inputs
4 6 digital inputs
(DI0 and DI1 interruptible)
Information
The type plate is stored on the module in an EEPROM and can be read out
by the application.
