System manual CECX / Temperature module CECX-E-4E-T-P1
CECX-II 23-9
23.5 Configuration
23.5.1 Setting the address
The modules are addressed via the address switch. A maximum of 12
modules of the same type can be distinguished on one line.
The address switch is located on the right side and underneath the lower
cover. The K-Bus plug is located underneath the upper cover.

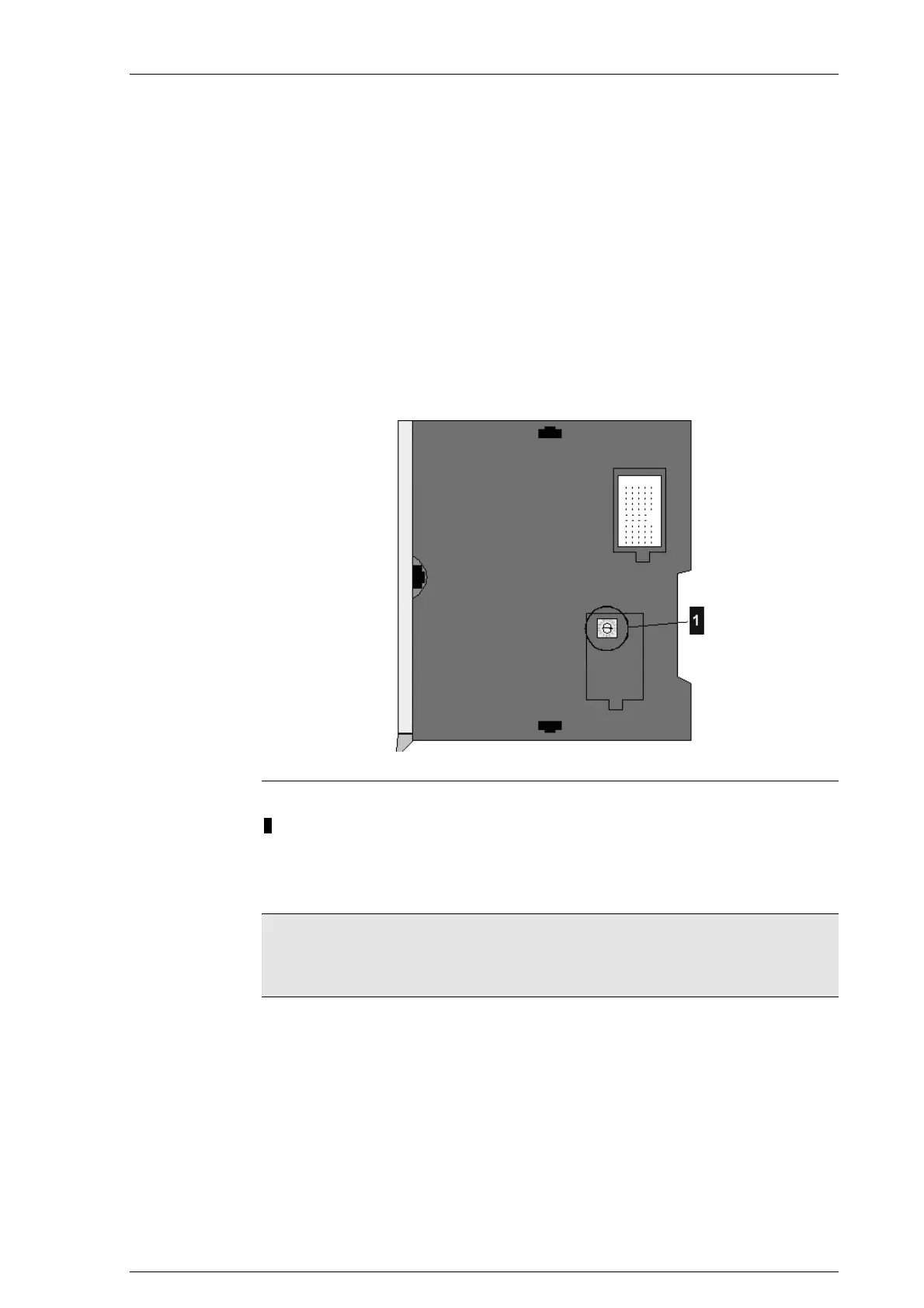

Position of the address switch
1.... Address switch
On leaving the factory all modules are set to address 0 and both covers are
closed.
Note
Modules of the same type that are installed within the same line must have
different address switch positions. Different modules (e.g. CECX-E-4E-T-
P1 and CECX-C-2G2) may have the same address switch positions.
The lids for the K-Bus plug and the address switch must remain locked at
the last module in the line (to protect it against dirt and damage through
electrostatic discharge on contact).
