Festo CECX-X-C1 Series User Manual

CECX modular control system

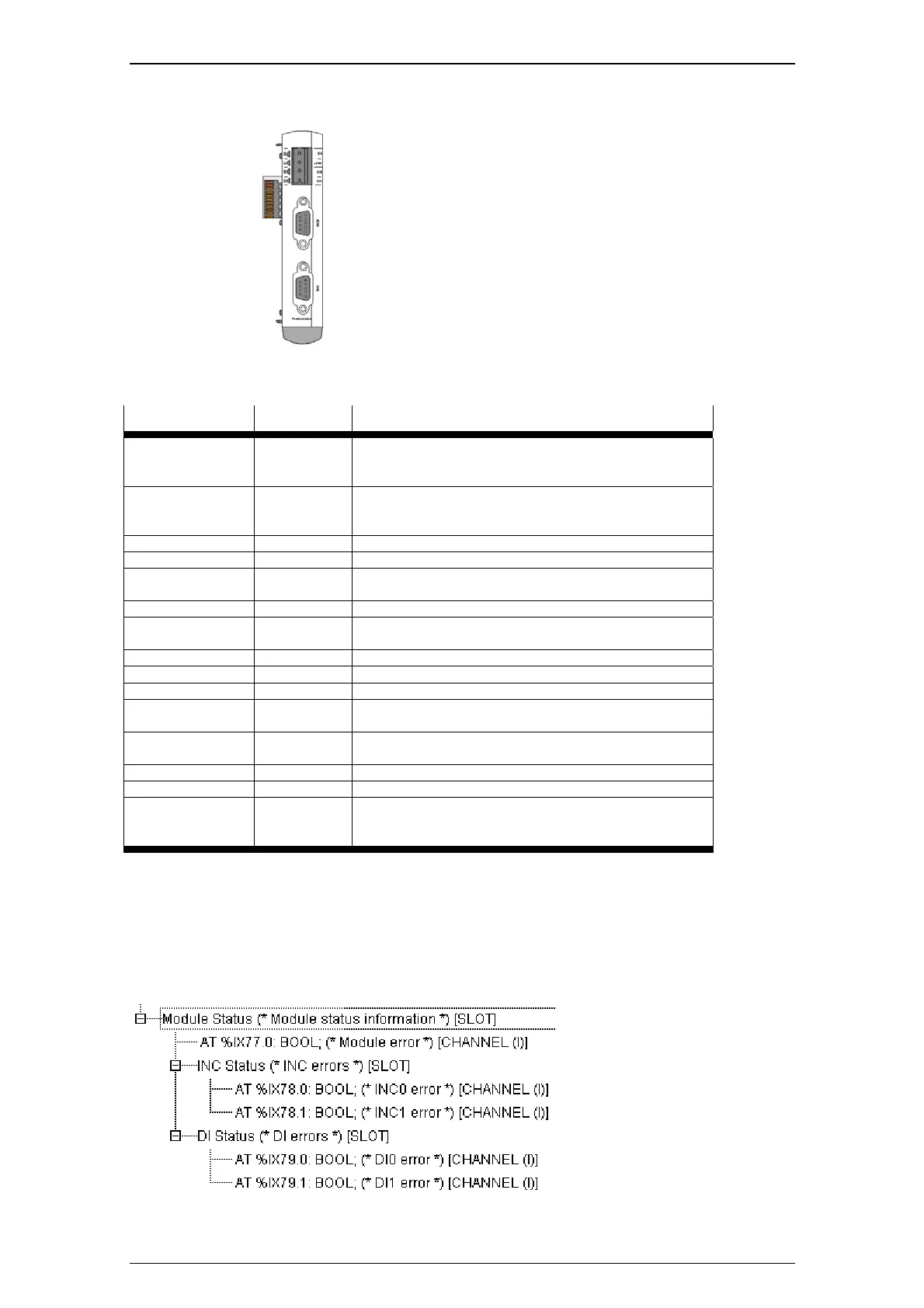

CECX-C-2G2
Motion extension module
 Incremental encoder (500 kHz))
 2 channels
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - 7 The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
Latch input type Sink Latch input DI0, DI1 (sink: switched to 24 V *)
Source Latch input DI0, DI1 (source: switched to 0 V). *)
INC0 - INC1:
encoder-type
24 V Encoder interfaces INC0, INC1, incremental input, for
encoder wit 24V output (single ended). **)
RS-422 For encoders with RS-422output (5 V differential).
INC0 - INC1:
edge count
1x Encoder counter pulse single.
2x Encoder counter pulse 2-fold.
4x Encoder counter pulse 4-fold.
Counter Counter with track A, without direction detection.
Signed
counter
Counter with track A and B, (with direction detection).
INC0: DI0 - INC1:
DI1 latch edge
None No latch function (= data storage at change of latch
input signal).
Rising edge Latch function activated at rising edge. *)
Falling edge Latch function activated at falling edge. *)
INC0 - INC1:
increments per
revolution
Number of impulses of transducer per rotation.
*) Additional latch functions can be used via the IncEnc.lib library.
**) With 24 V encoders no sensor failure and short circuit can be detected.
Status values as diagnosis information
The following status values are created for this module (example):
CECX-I 30
