30.6 Connections and wiring
30.6.1 Interface CAN

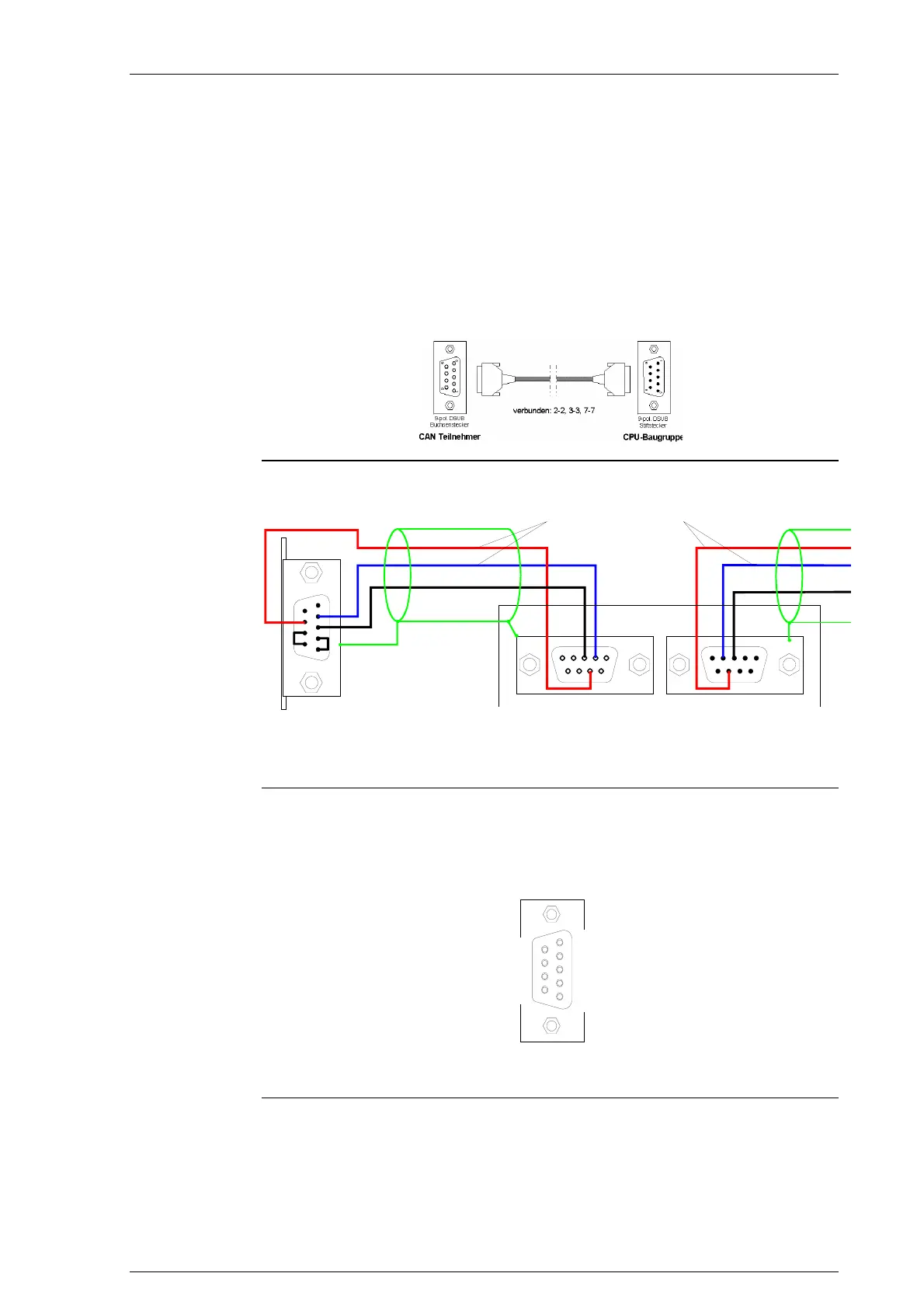

30.6.1.1 Connection example
CAN connection at the module: 9-pole D-SUB male connector
2
3
7
23
7
CECX-F-CO
(end station)
CAN+
CAN-
SGND
CAN+
CAN-
SGND
23
7
Contact the shield
with the connector
at both sides and
at a large surface
area.
twisted pairs of wires
CAN station
Example for connecting a CECX-F-CO via CAN
30.6.1.2 Pin assignment
6
1
5
9
Reserved
Reserved
CAN +
GND
Reserved
Reserved
SGND
CAN -
Reserved
9-pin DSUB
female connector
Pin assignment, DSUB plug connection from front
