CECX modular control system
scan The short-circuit detection reactivates the outputs not
affected by the short circuit.
DI0 - DI7: despike None No input signal debouncing.
100 ms Debouncing time 100 ms.
DI0 - DI1: Interrupt None No edge evaluation.
Rising
edge
Signal change at rising edge. *)
Falling
edge
Signal change at falling edge. *)
Both Signal change at every signal edge. *)
*) The two inputs DI0 and DI1 can be interrupted. i.e. they can trigger system events when corresponding
module parameters have been set. They can be evaluated with the functions of the 'EventData.lib" library.
Status values as diagnosis information

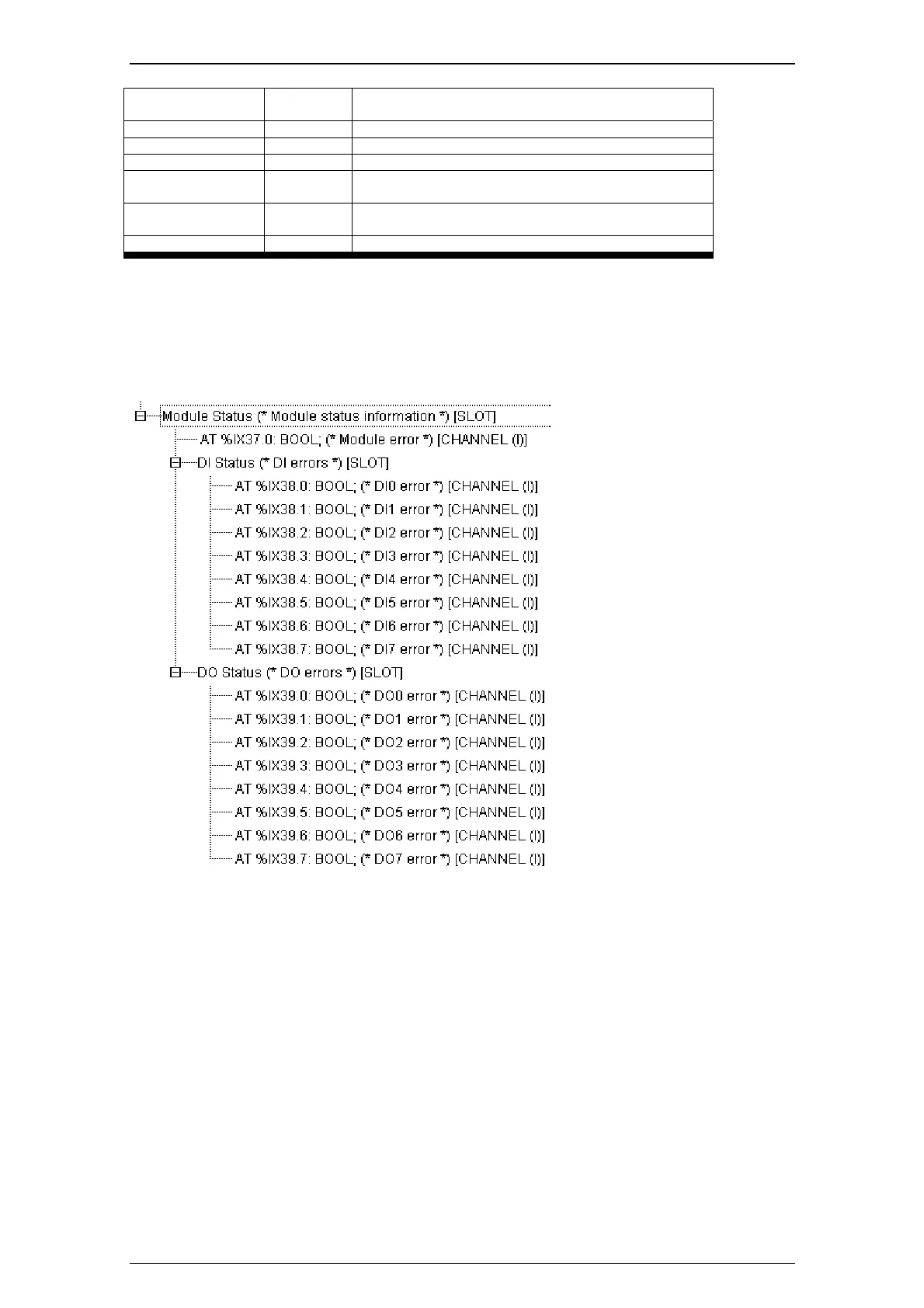

The following status values are created for this module (example):
Possible error states (when status = TRUE)
Module status: module is defective or missing.
DI status: no error message
DO status: short circuit of the outputs.
