System manual CECX / CPU module

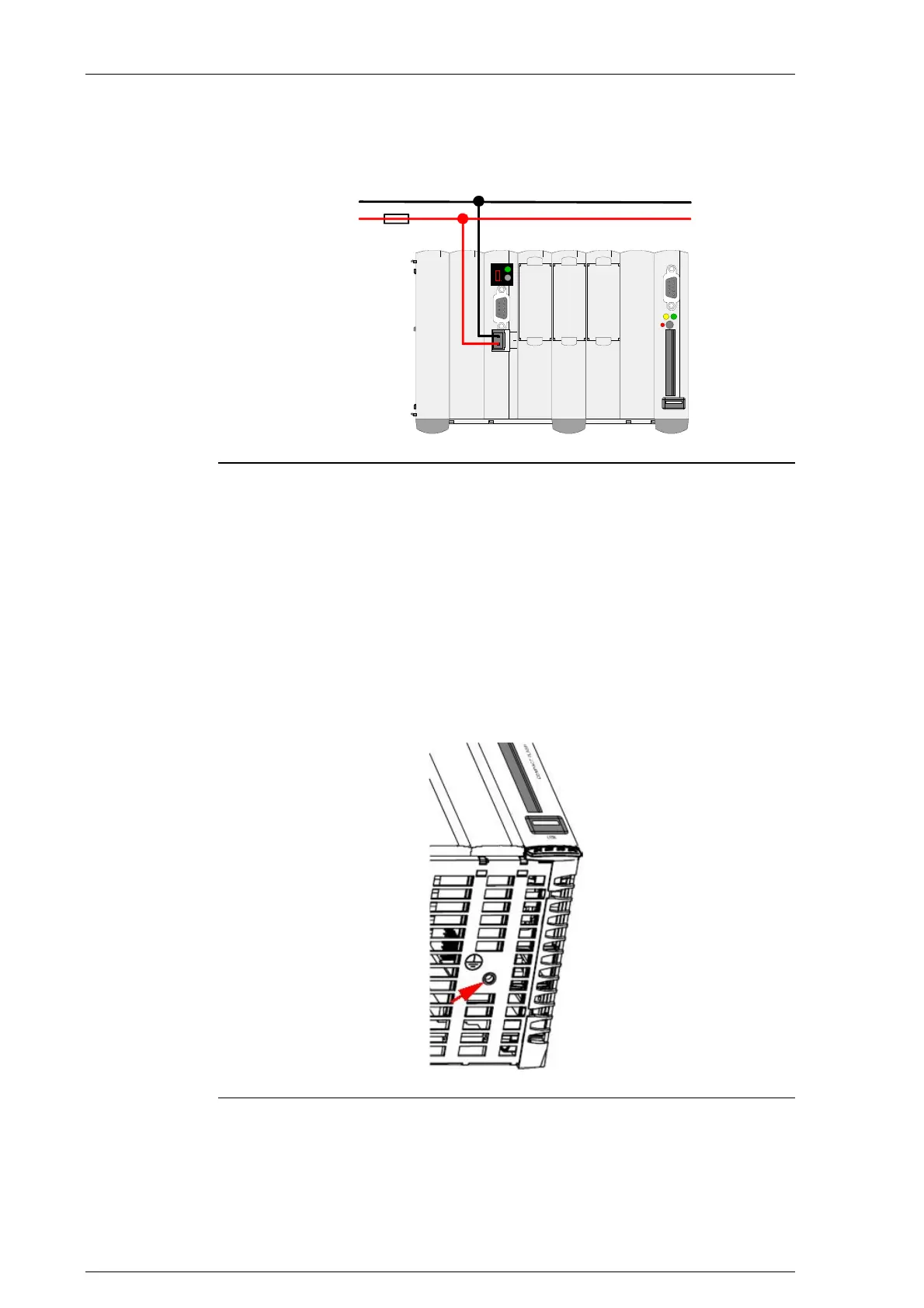

14.7.1.1 Connection example
0V
+24V
USB
+24 V
10 A
0 V
Power input
Recommended fuse protection: circuit line breaker LSS 10A – type B
14.7.2 Grounding
If required for reasons of electrical safety for the end usage, the metal parts
of the module can be grounded via the threaded bushing (M4) that is lo-
cated on the underside of the casing (grounding point).
Material:
electrolytic galvanized sheet steel, blue galvanized self-clinching standoff
Position of the grounding point
CECX-II 14-12
