System manual CECX / CPU module
Serial Interface
0V
+24V
CAN
RXTX
USB
EthernetCANSerial Interface
Compact Flash
PowerCtrl
Diagnostic
X3
X3
X4
X4
X5
X5
X1
X2
X6
X7
X8
COMPACT
FLASH

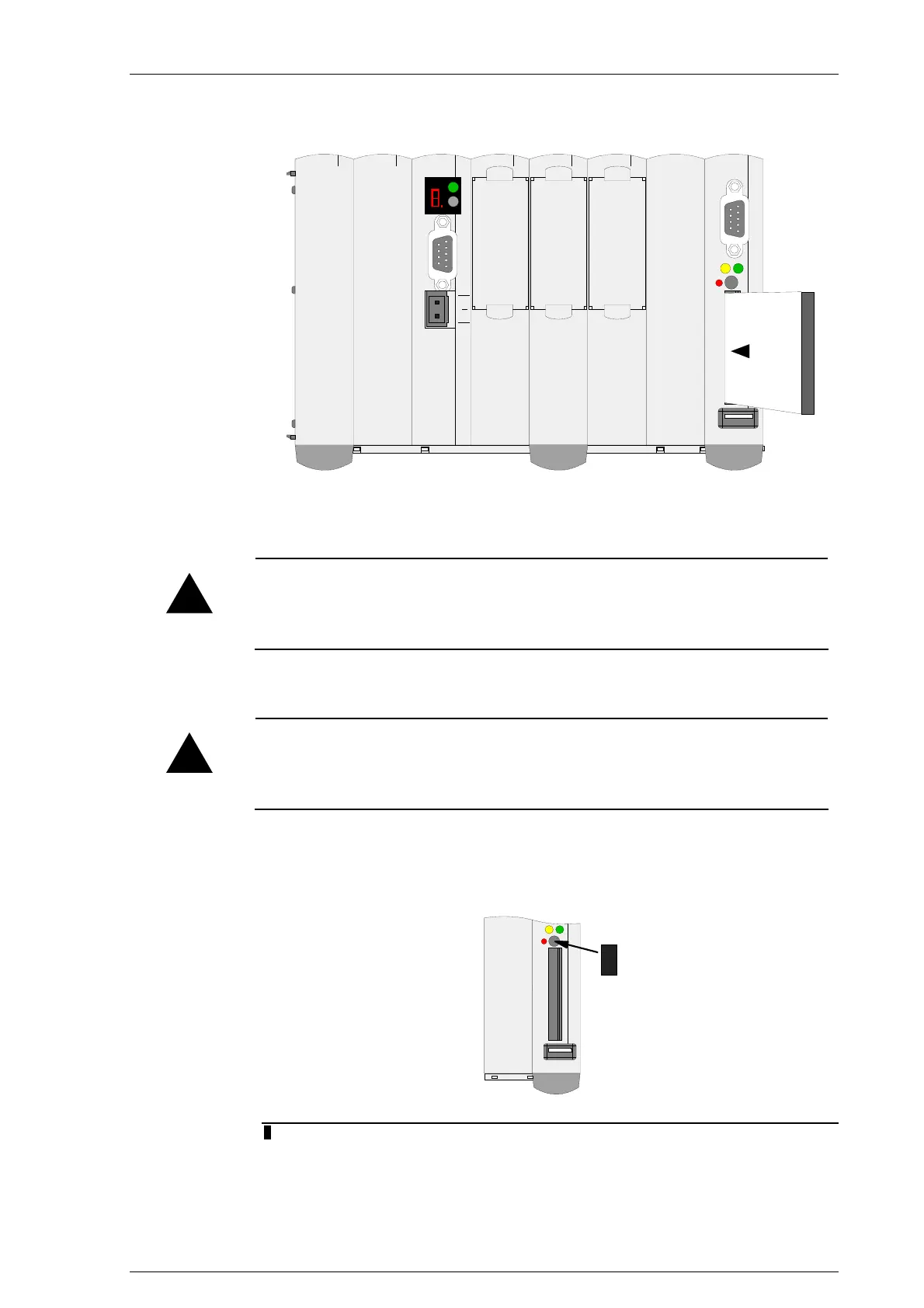

1. Turn off power supply
2. Insert the Compact Flash card in the direction of the arrow.
!
CAUTION!
ï‚· Insert the Compact Flash card as shown in the diagram with the arrow
to the front. Improper insertion can cause damage to the contact pins.
14.7.5.4 Removing the Compact Flash card
!
CAUTION!
ï‚· The Compact Flash card may neither be plugged in nor unplugged dur-
ing operation.
1. Turn off the power supply.
2. Press the key above the card slot and pull out the Compact Flash
card.
1
RXTX
USB
Com pac t Fl ash
X7
X8
1 ... Button for unlocking the Compact Flash card
CECX-II 14-17
