System manual CECX / Temperature module CECX-E-6E-T-P2
CECX-II 24-4
24.3.2 Accessories
24.3.2.1 TE 220/A terminal temperature sensor (option)
The terminal temperature sensor TE 220/A is used for the external cold
junctioncompensation. It must be used when the temperature lines have in-
termediate connections with Cu-wires.

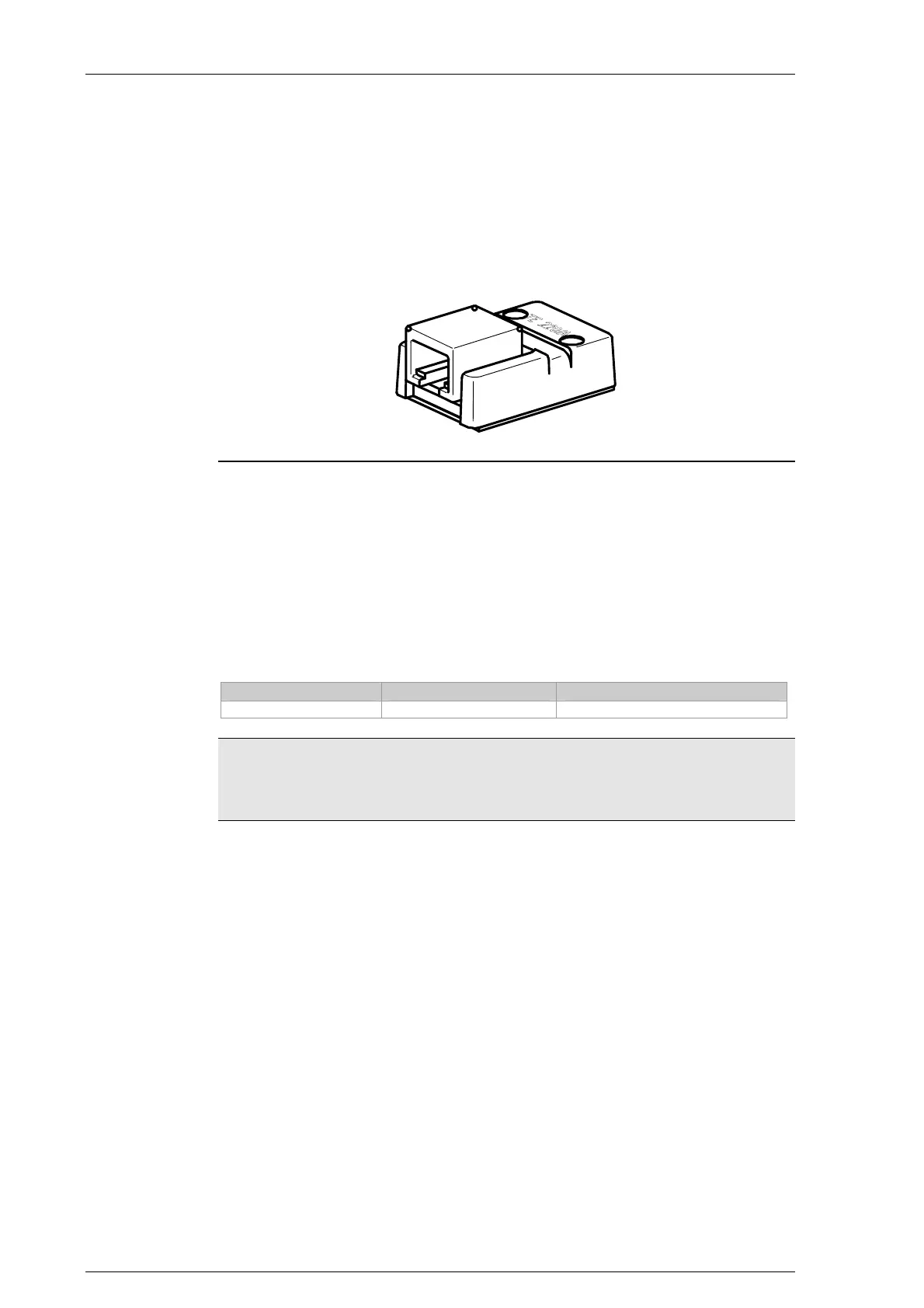

View TE 220/A
24.3.2.2 Connector strip
The temperature measurement inputs of the CECX-E-6E-T-P2 are
designed as male connectors with gold contacts, with grid dimension of
5.08 mm.
As counterpart, female connectors with gold contacts (e.g. 2 blocks with
each 6 connections from Weidmüller) are therefore required.
Socket board CECX-E-6E-T-P2 Order no. Weidmüller
6-pole 2 BLZF 5.08/6 SN SW - 170773
Information
Larger terminal blocks may be used to group multiple signals. The current
carrying capacity of the terminal block is thus, however, reduced (according
to derating curve of the terminal block manufacturer.)
The technical data for the terminals are contained in the technical data
sheet of the manufacturer of the female connectors.
