System manual CECX / Incremental encoder interface module CECX-C-2G2
CECX-II 27-15
Position measurement 4-fold:
Q
P
B
A
1234

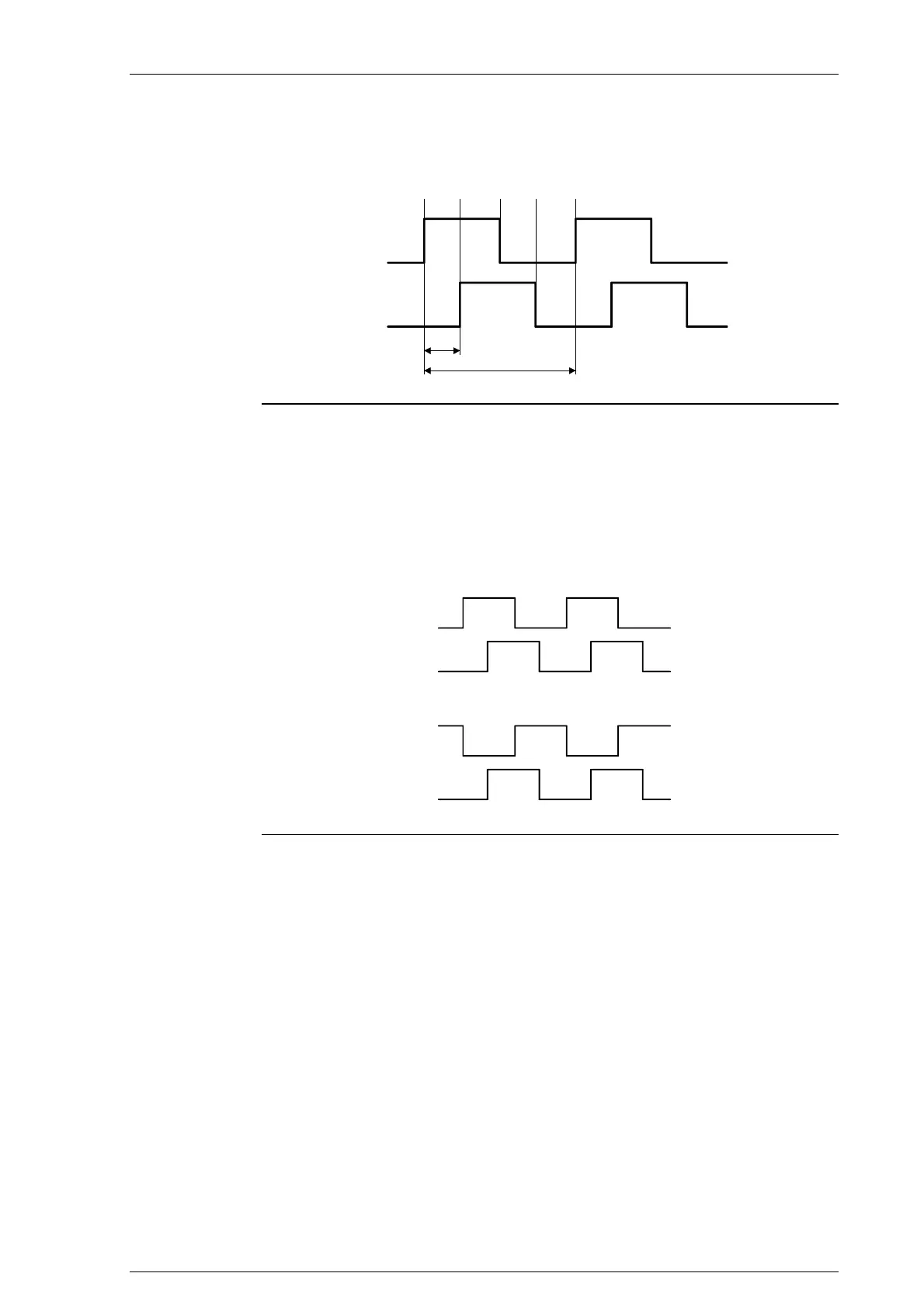

Impulse signals of the position transducer, resolution 4-fold
A, B Pulse signals of the position trans-
ducer
P Cycle time
Q Resolution -fold
The actual direction of the movement is identified from the evaluation of the
phase position of the pulse signals A and B (see following image):
B
B
foreward
backward
Pulse signals of the position transducer, identification of the movement direction
27.6.3 Position counter
The position counter is a relative counter, that starts at Zero and is updated
permanently.
