System manual CECX / CAN option module CECX-F-CO
CECX-II 30-5
30.4.1 Inserting an option module
1) Turn off the power supply.
2) Remove dummy module.
3) Insert module in the right position (labeling X4 and CAN) left into the
middle slot.
Ethernet
CAN
SI1
X4X3 X5
CAN
X4
RXTX

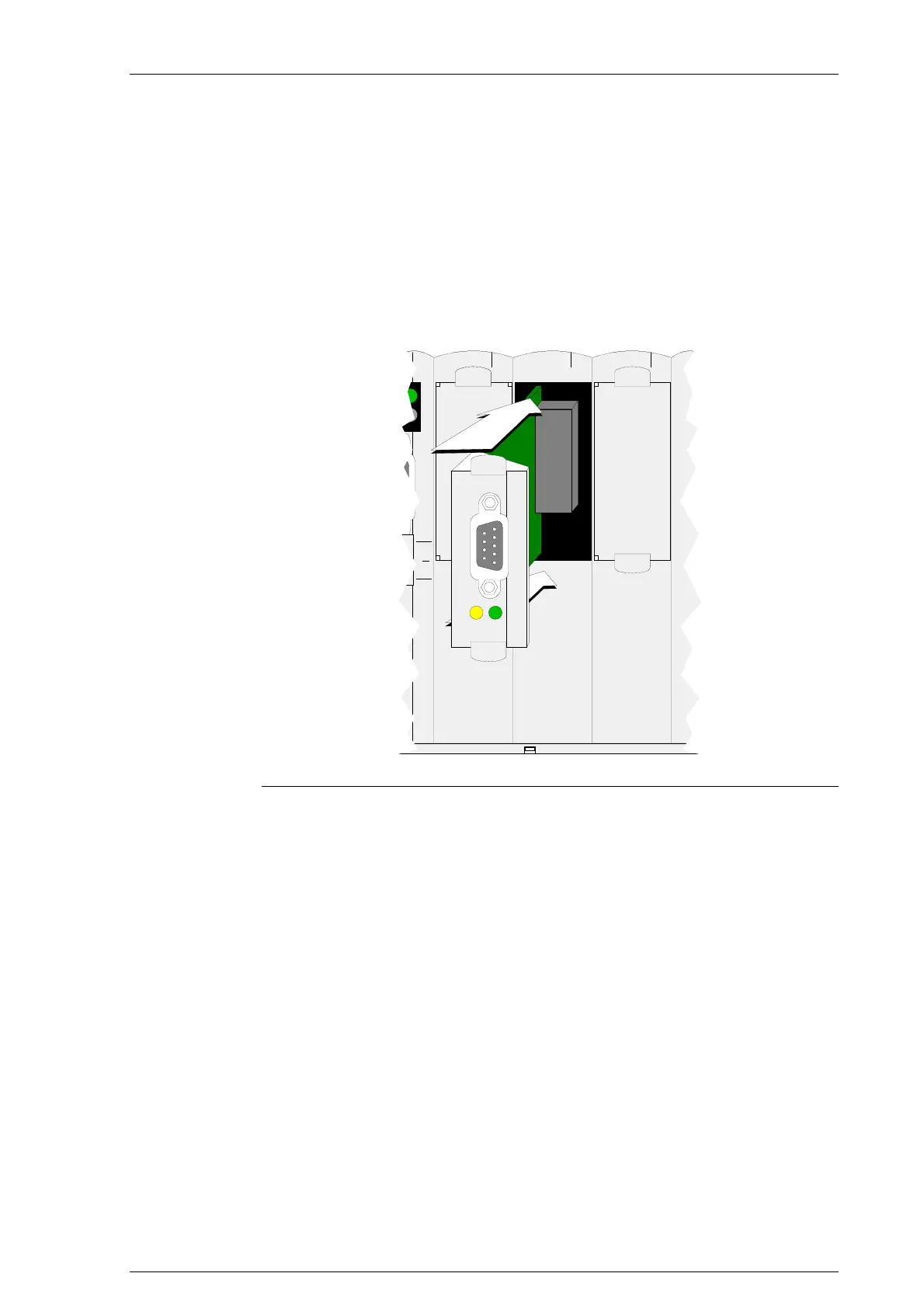

Inserting the CECX-F-CO option module into CP 23x module
