System manual CECX / Bus link module CECX-B-CO
0V
+24V
STATUS
ADRL
ADRH
BAUD
0
4
0
4
0
4
CAN
RXTX
baud rate setting
CAN address setting

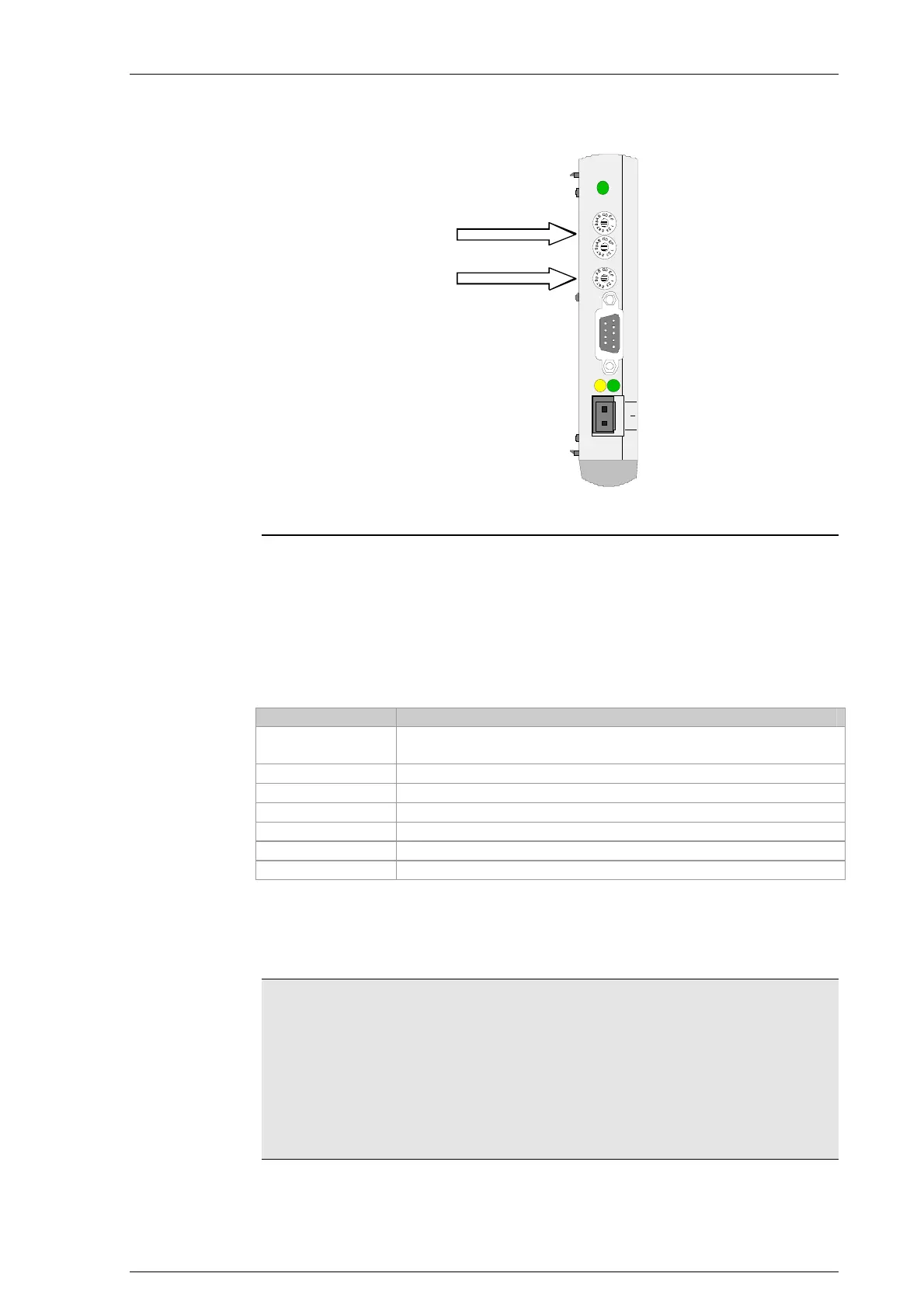

Position of the CAN address switch and the Baud rate switch
34.7.2 Defined Baud rates
The Baud rate must be selected according to the length of the cable. See
"Maximum cable length".
The following Baud rates can be set via rotary switch:
Switch position Baud rate
0 Delivery condition, not allowed during operation, see infor-
mation.
1 125 kbit/s
2 250 kbit/s
3 500 kbit/s
4 800 kbit/s
5 1 Mbit/s
6 - F not allowed.
The firmware adopts the adjusted Baud rate once during start-up of the
CECX-B-CO. Changing the Baud rate during operation
is not possible.
Information
The CECX-B-CO is delivered with the Baud-switch position 0. It is manda-
tory that it is set accordingly. If the Baud-switch position is invalid, the
communication with the CECX-B-CO is disabled (Status LED illuminates
red).
To increase the robustness of the CAN-network, the Baud rate should be
selected accordingly lower. The set Baud rate must be set using the con-
figuration tool
Match the Baude rate, otherwise an error is issued.
CECX-II 34-13
