The Festo_PartDetector.lib library
9

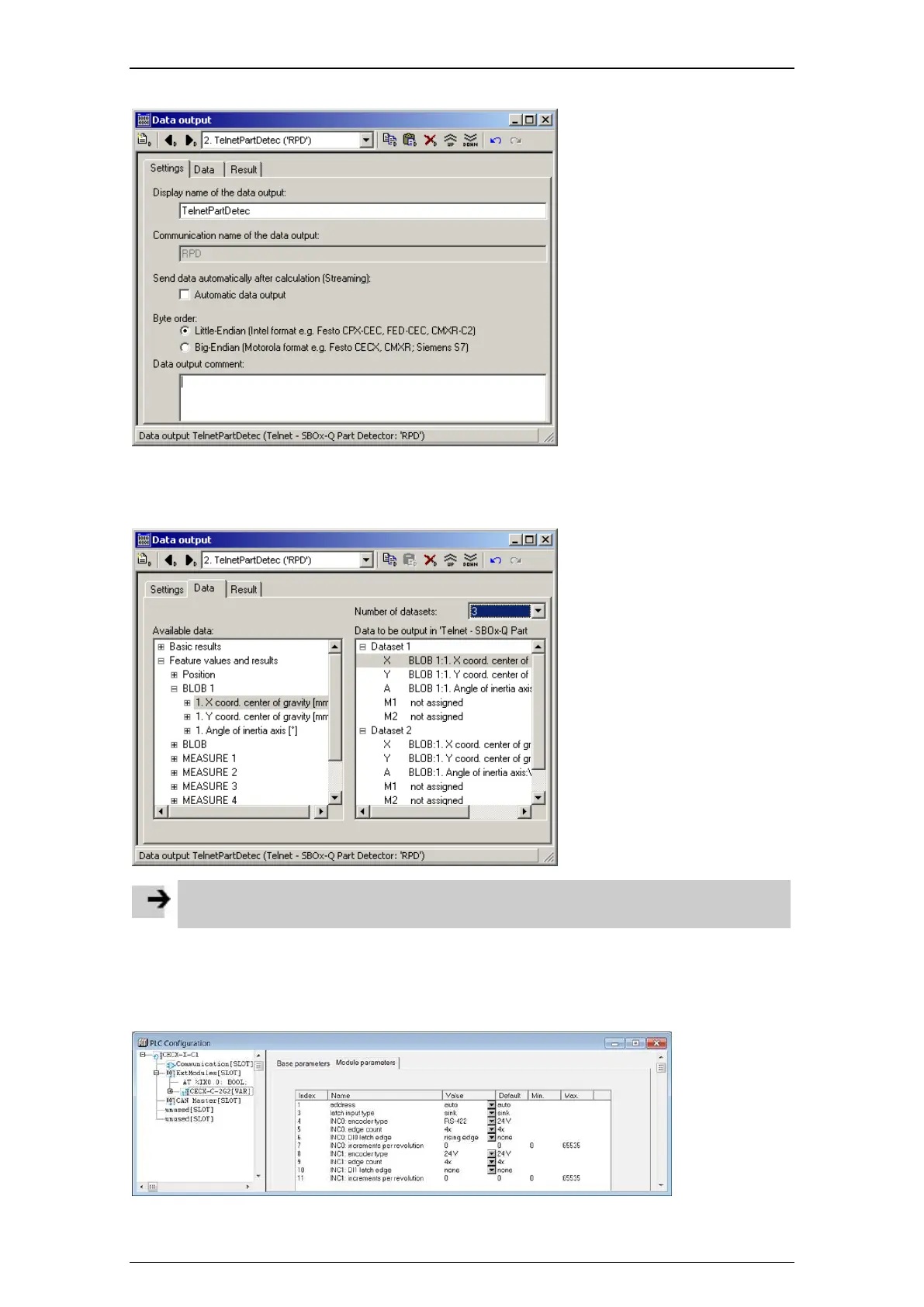

Figure: Data output - "Settings" tab
On the "Data" tab, the calculated characteristics are assigned to the datasets of the data output of type
"Telnet – SBOx-Q Part Detector".
Figure: Data output - "Data" tab
Note
Data transmission via the Telnet Streaming Server of the device is not supported.
Configuring the encoder card
The encoder card must be parameterised in CoDeSys in such a way that it matches the encoder and the
latch mechanism works with the flash signal of the camera (rising edge).
Figure: Data output - "Data" tab
