FED/VipWin interface
21

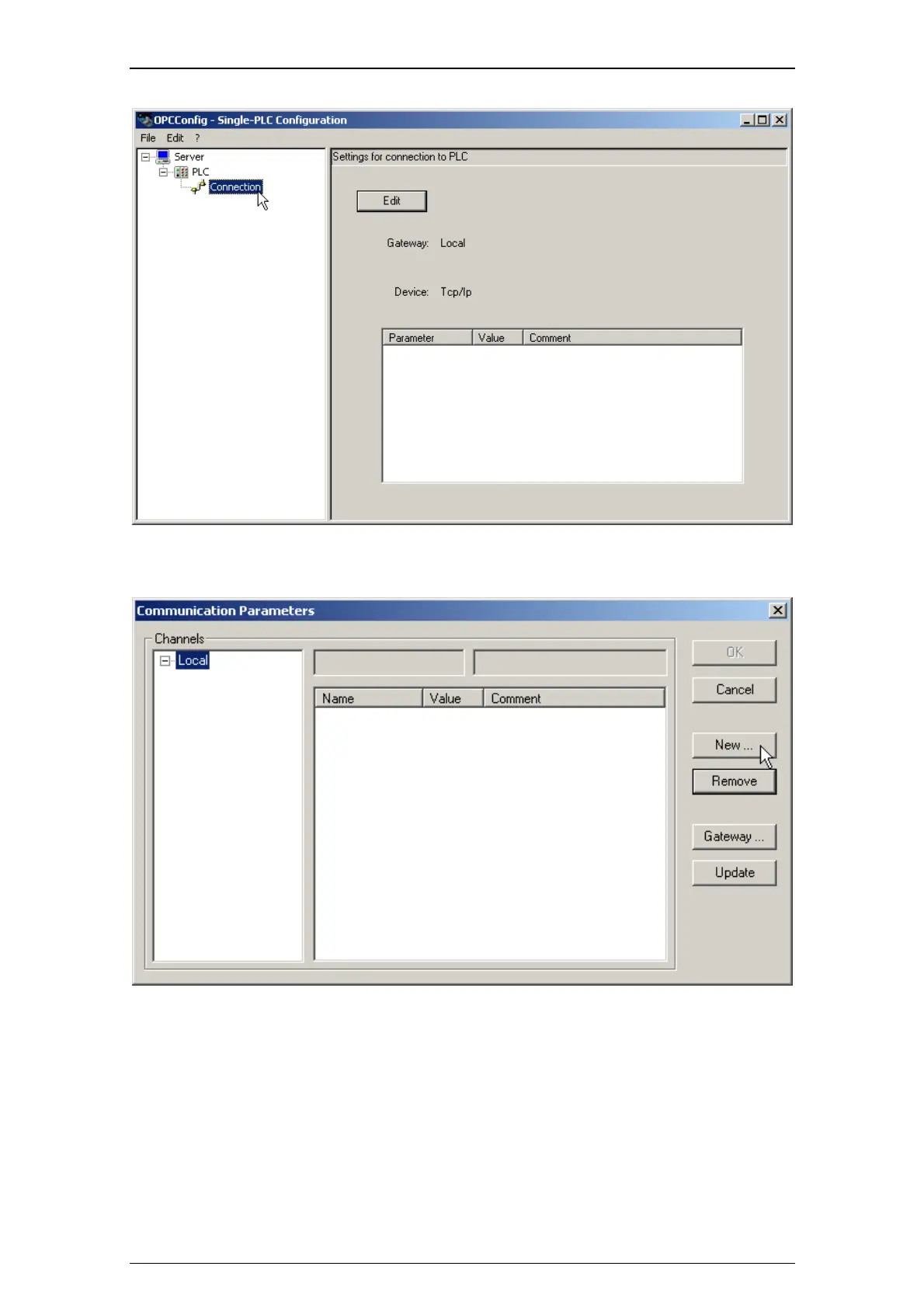

Fig.: "PLC Configuration - Connection" window (Single-PLC here)"
4. Click on the "Edit" button. The "Communication parameters" window then appears.
Fig.: "Communication Parameters" dialog box
5. Select "New" to set up a new communication connection. The "Communication Parameters: New
Channel" dialog box then appears.
6. Enter the name of the Festo CoDeSys controller you are using in the "Name" field and select the entry
"TCP/IP (Level 2)" in the "Device" field.
The "Communication Parameters" dialog box then appears again.
