F R O N T C O N S O L E C H A P T E R 7

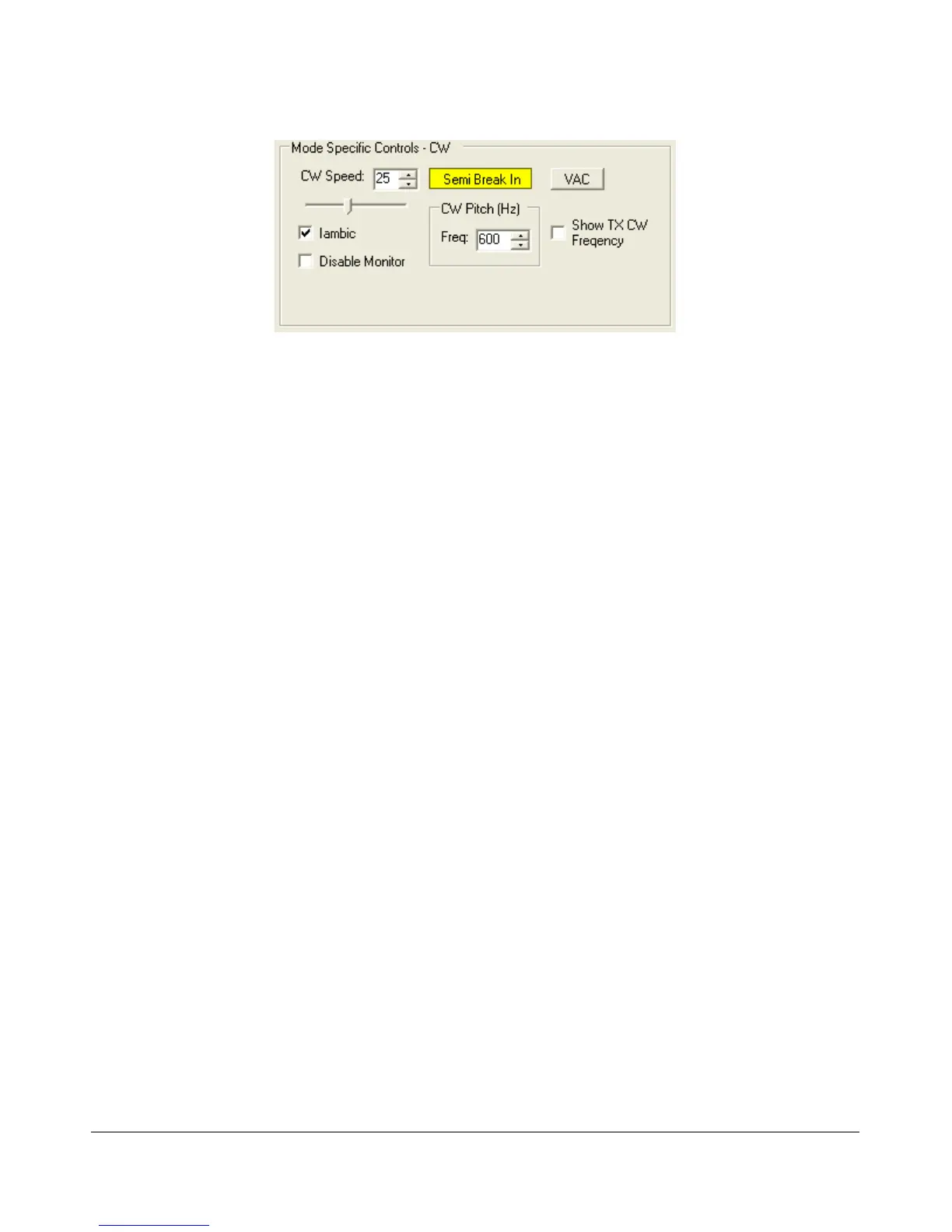

Figure 36: Mode Specific Controls - CW
CW Speed: sets the CW speed when using the internal keyer in Iambic mode. Adjust the speed
with either the text box or the slider.
Iambic: check to set the internal keyer to Iambic mode.
Disable Monitor: check to disable the monitor (this can be useful when using an external keyer).
Semi Break In: click to enable Semi Break In for the internal keyer.
CW Pitch (Hz): sets the desired audio frequency for CW listening at the center of the CW filters.
This will determine the offset that is applied to the carrier in receive and transmit. The display will
continue to read the actual carrier frequency (if the radio is calibrated) but the software will provide
for an offset to get the desired CW tone. This pitch will determine the automated tuning frequency
using the display and mouse “click tune” functions.
VAC: click to enable the virtual audio cables, setup on the Setup Form-Audio Tab, VAC Sub-Tab
(see next chapter, where you can also find a more detailed description). VAC is not automatically
enabled for CW modes, even if Auto Enable has been checked on the VAC Sub-Tab.
Show CW TX Frequency: check to show the CW TX frequency as a single yellow line when the
display is set to Panadapter. It can be an especially useful visual aid when operating split to position
your transmit frequency where desired (in a pile-up) using VFO B.
[The rest of this page has been left blank intentionally]
49 FlexRadio Systems
