FlexRadio Systems SDR-1000 User Manual

S E T U P F O R M C H A P T E R 8

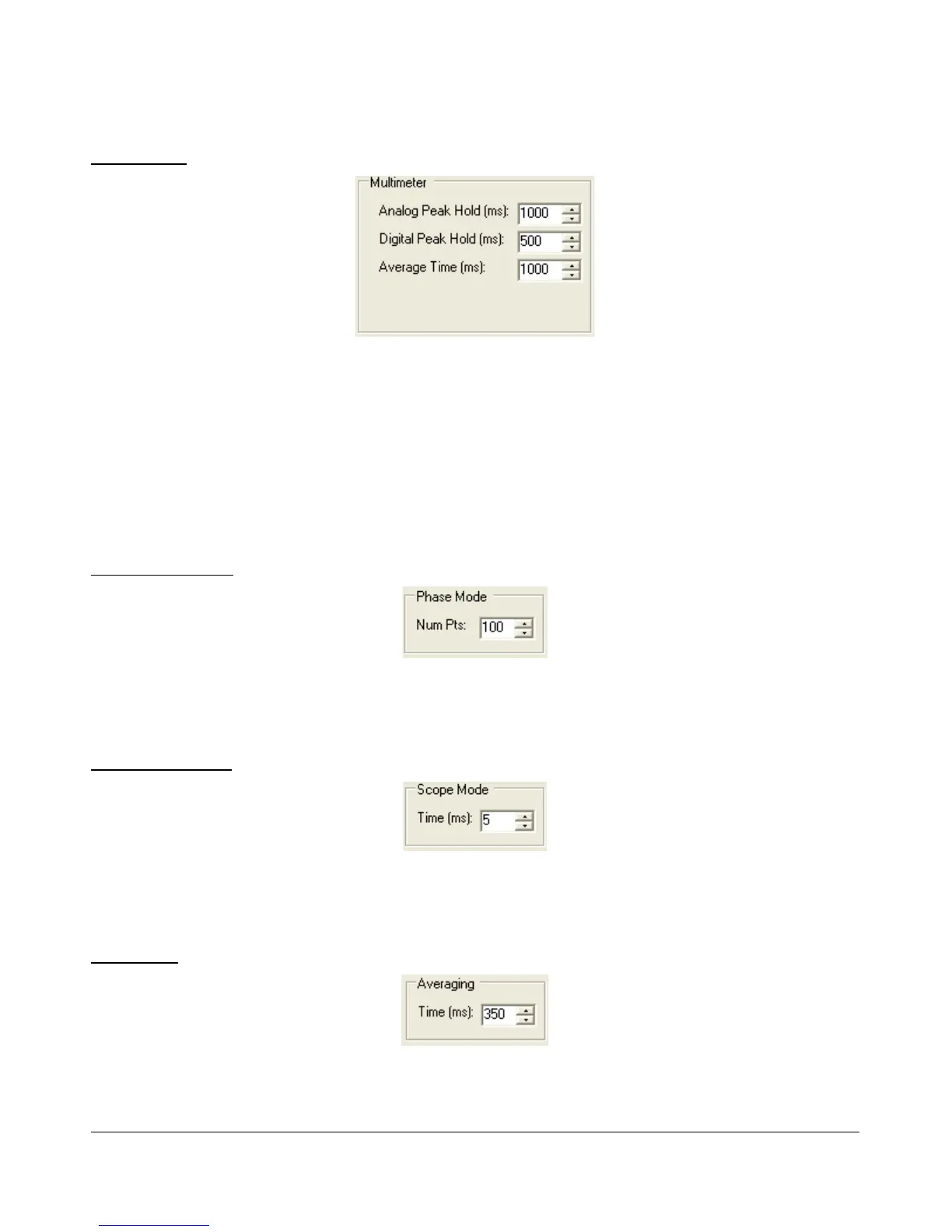

Multimeter
Figure 76: Multimeter Display options
 Analog Peak Hold (ms): The length of time in milliseconds to hold the peak on the analog bar
meter. Raising this value will lengthen the hold time and peaks will be held for a longer period of
time.
 Digital Peak Hold (ms): The length of time in milliseconds to hold the digital meter when using
the Fwd Pwr TX Meter. Raising this value will lengthen the hold time and peaks will be held for a
longer period of time.
Phase Resolution
Figure 77: Phase Resolution
This control sets the phase resolution in number of points displayed per 360°.
Scope Time Base
Figure 78: Scope Time Base
This control adjusts the time base in ms (horizontal time scale) of the Scope Display.
Averaging
Figure 79: Display Averaging
83 FlexRadio Systems
