F R O N T C O N S O L E C H A P T E R 7
(7) Filter Controls

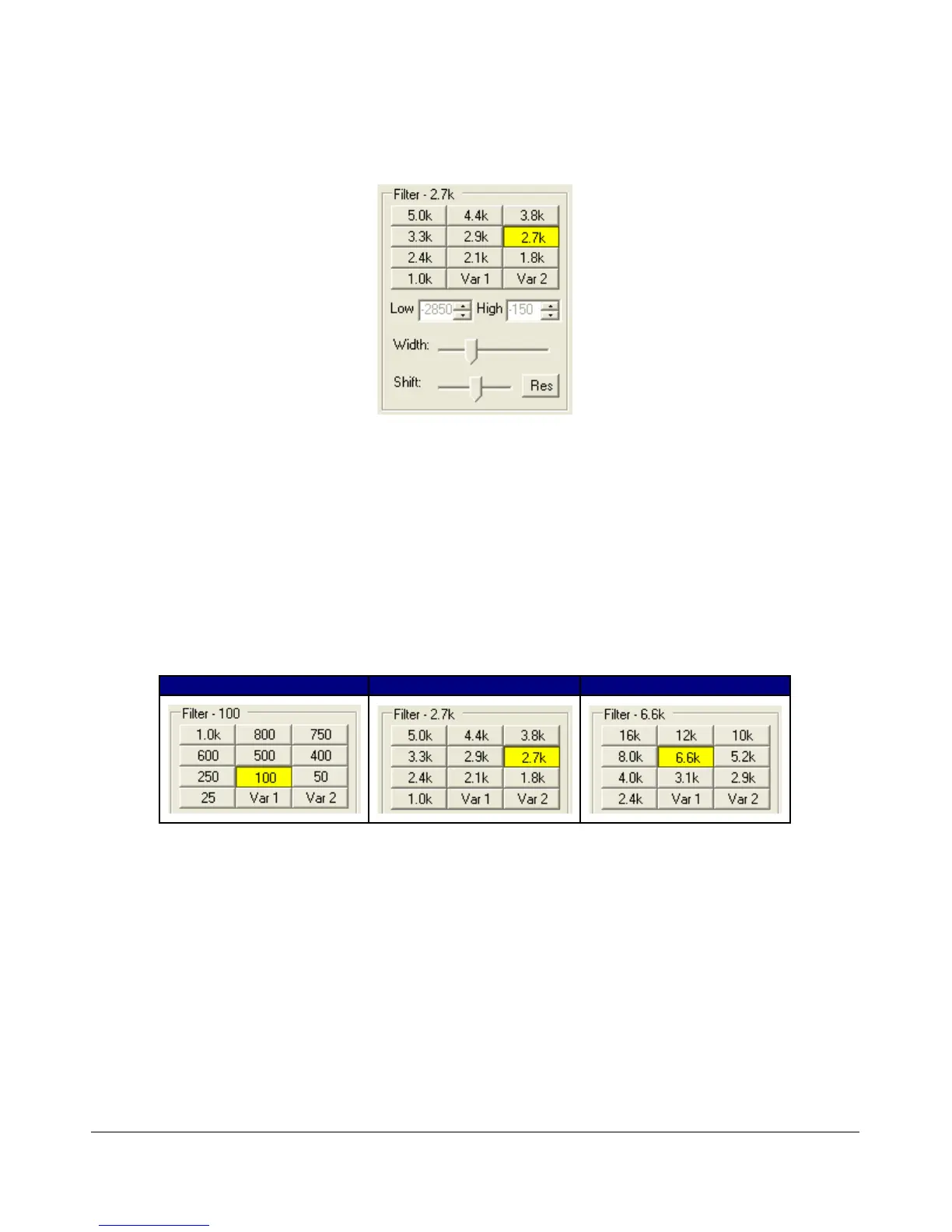

Figure 32: Filter Controls
The filter controls consist of ten customizable, mode-specific, labeled filter buttons and two variable filter
buttons.
Labeled Filter Buttons
Clicking on any of the labeled buttons in the top half of the filter controls section sets the filter bandwidth.
The available filters depend on the selected modulation mode. The 3 groups of default filter selections for
CW (CWL, CWU), SSB (LSB, USB, DIGL, DIGU) and DSB (DSB, FMN, AM, SAM) are shown below.
The SPEC mode has no filters associated with it and the DRM filter is fixed at 10MHz.
CW Default Filters SSB Default Filters DSB Default Filters
Figure 33: Default Mode Dependent Filters
Each of the 10 labeled filter buttons can be customized for any of the modes. To do so, right click on a filter
button and select Configure… to bring up the following screen.
[The rest of this page has been left blank intentionally]
