O P E R A T I N G F O R M S C H A P T E R 9
(29) Memory Form
Click the Memory menu allows saving and retrieving information such as frequency, mode, filter and
various other settings.
Save…
Opens the Save Memory Channel form as shown in the figure below.

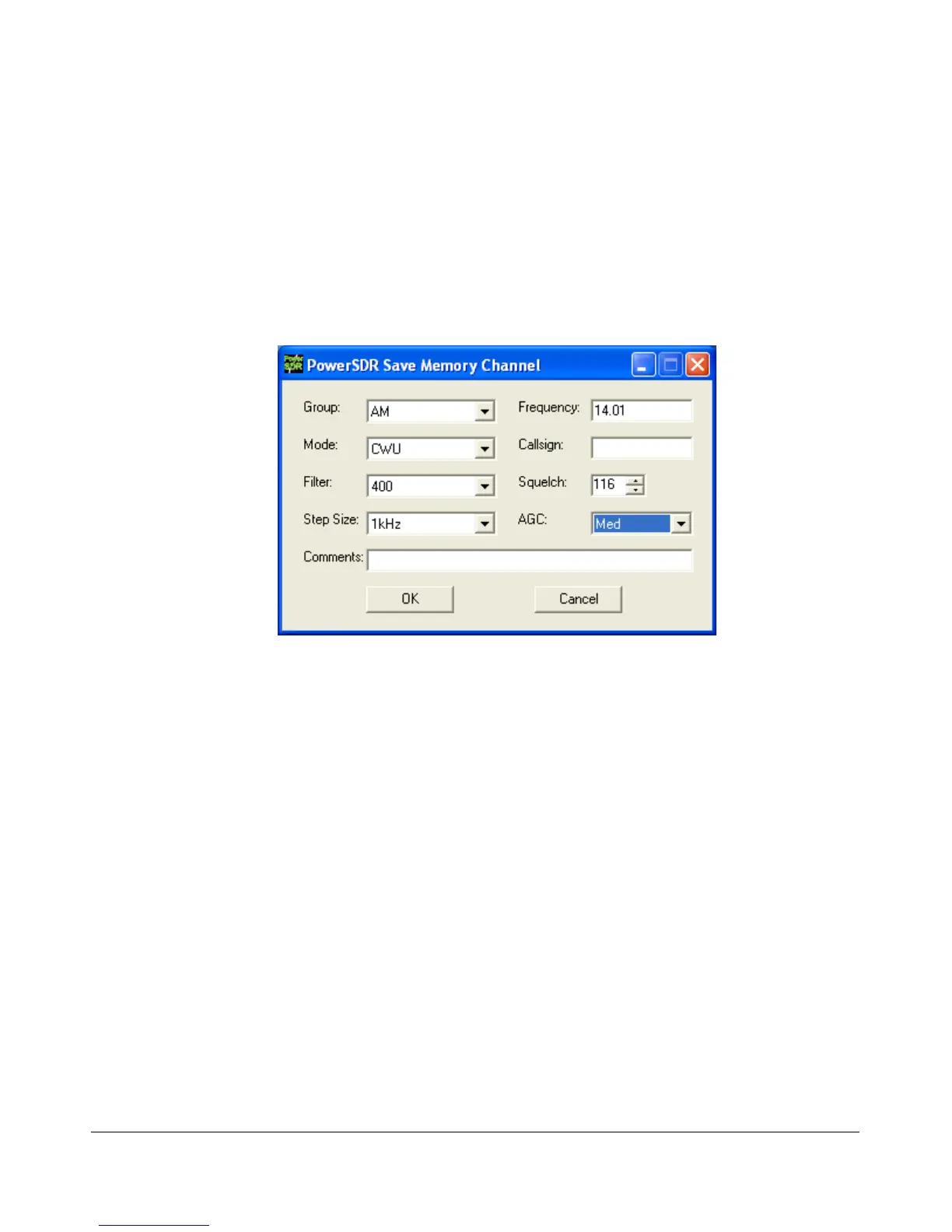

Figure 122: Save Memory Channel Form
The current Mode, Filter, Step Size, Frequency, Squelch and AGC settings are automatically
transferred from the console. The Group Drop Down Box allows a further level of characterization
of the type of entry. In the future this Group list will be customizable. The Callsign and Comments
fields are free form and the user can enter details as desired. Clicking the OK button will save the
information shown above into the memory database before closing the form. Clicking Cancel
simply closes the form (the data is not saved).
[The rest of this page has been left blank intentionally]
