S E T U P F O R M C H A P T E R 8
Ext. Ctrl Tab

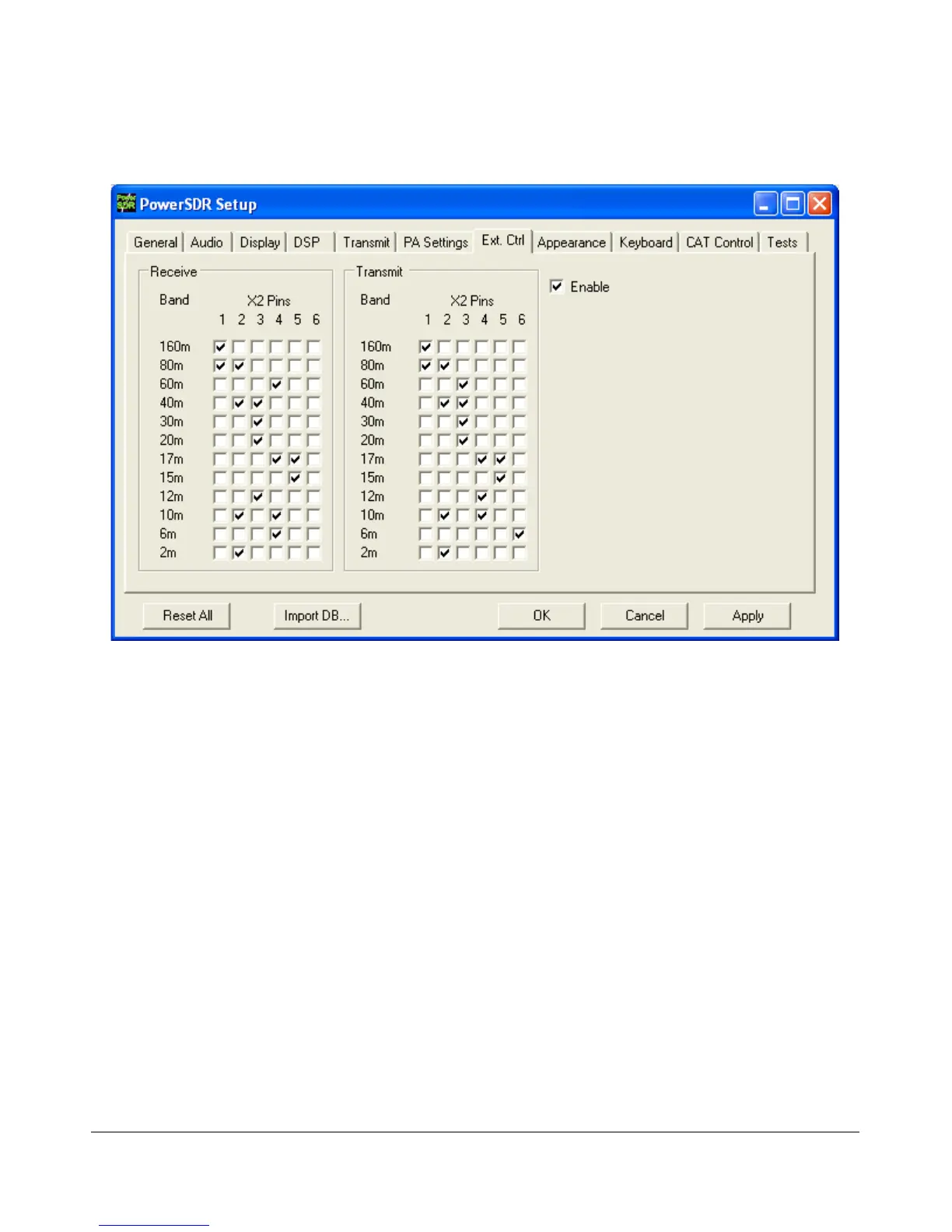

Figure 104: Setup Form - Ext. Control Tab
This form enables the user to map various bands to X2 pin outputs. This is a good way to control an
external linear amplifier or transverter that needs to be switched in and out depending on what band you are
on. Note that there are separate settings for transmit and receive. To use the controls, simply mark the boxes
to indicate which pins should go logic high for that band. For example, if you check the 2 and 4 boxes on
the 20m band on receive, those two pins will go high when in receive mode on that band.
[The rest of this page has been left blank intentionally]
103 ď›™FlexRadio Systems
