FlexRadio Systems SDR-1000 User Manual

S E T U P F O R M C H A P T E R 8
 Zero Line: The color of the zero line in frequency displays.
 Text: The color of the text on the display for frequency and level callouts.
 Data Line: The color of the actual data being displayed.
 Line Width: The width in pixels of the actual data being displayed.
Cursor/Peak Readout
These controls change the appearance of the cursor and peak texts under the frequency displays.

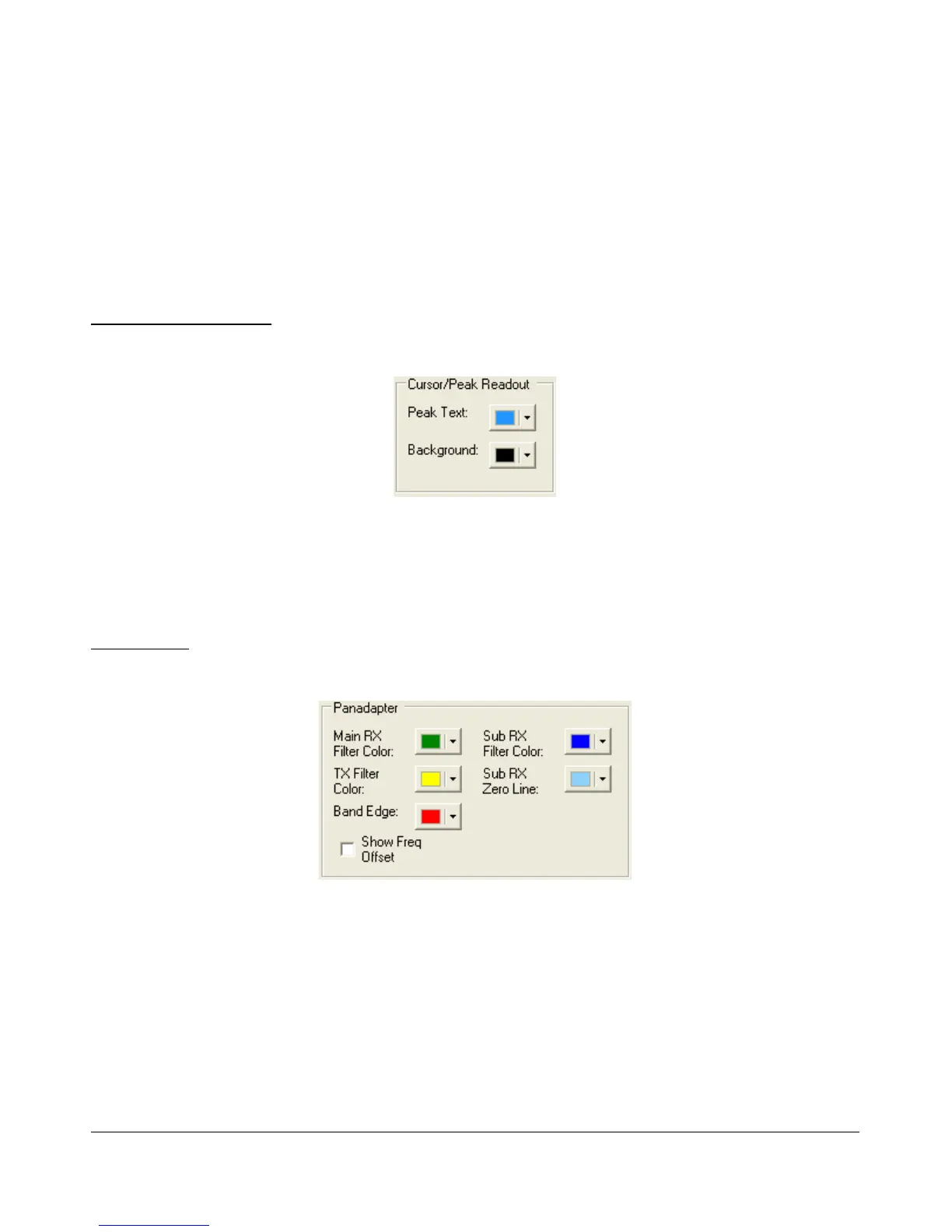

Figure 107: Cursor/Peak Readout Appearance Controls
 Peak Text: The color of the Peak signal location text located under the display.
 Background: The background color of the Peak signal location text.
Panadapter
These controls change the appearance unique to the Panadapter display.
Figure 108: Panadapter Appearance Controls
 Main RX Filter Color: The color of the Main RX Filter.
 Sub RX Filter Color: The color of the Sub RX Filter.
 TX Filter Color: The color of the TX filter-edges.
 SUB RX Zero Line: The color of the 0 Hz line of the Sub RX Filter.
 Band Edge: The color of the lines marking the edge of an Amateur band.
105 FlexRadio Systems
