S E T U P F O R M C H A P T E R 8
fully companded SSB in the near future, this control was put in to the console to allow us to gain
experience with this algorithm.
AM Carrier Level

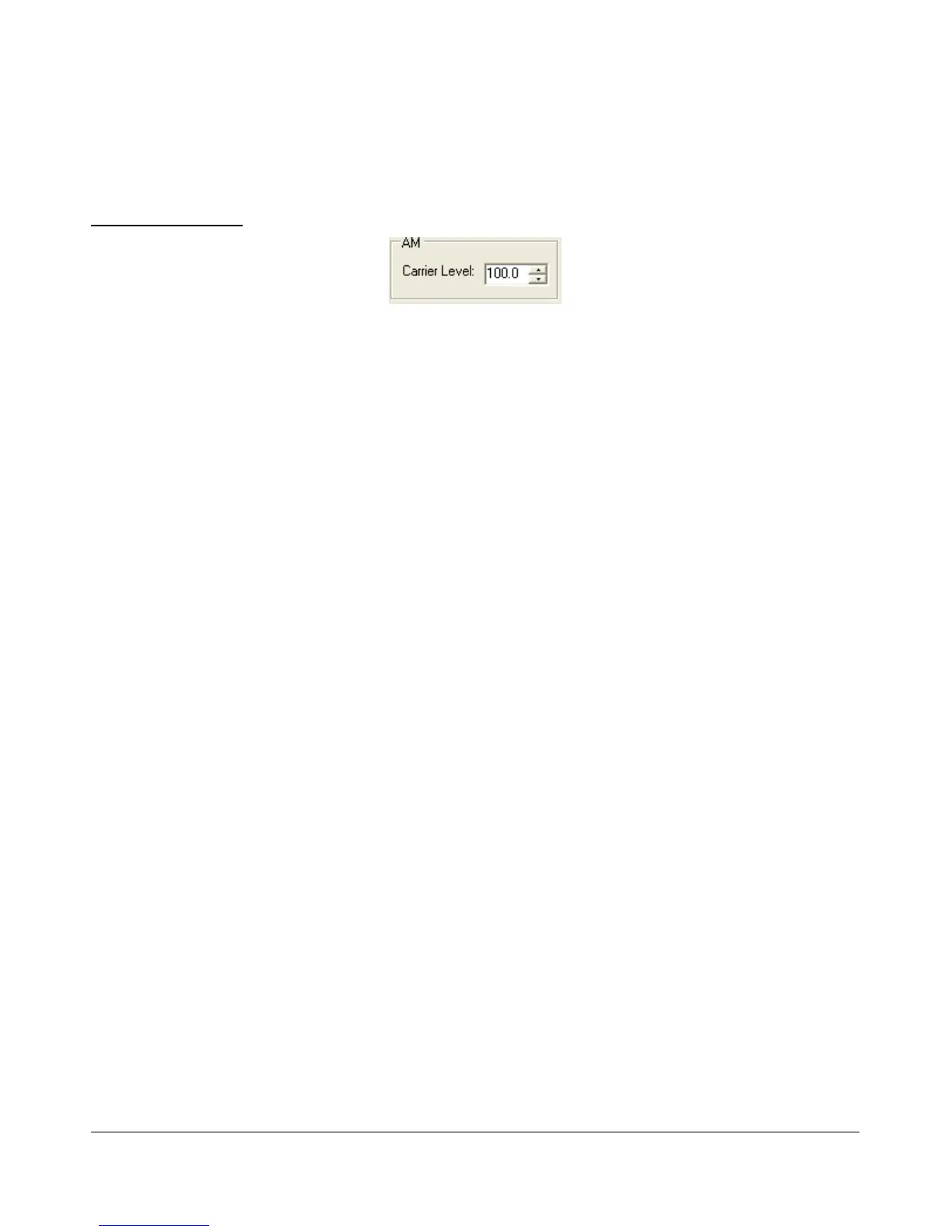

Figure 102: AM Carrier Level
The Carrier Level determines the percentage of carrier level to be applied to the transmit signal where
100% is one quarter of full power output (25W when Drive on the front console is set to 100). So a setting
of 80 would yield roughly 16W when Drive is set to 100. This is useful as it allows the modulation to
appear much stronger due to the weaker carrier.
[The rest of this page has been left blank intentionally]
101 ď›™FlexRadio Systems
