O P E R A T I N G F O R M S C H A P T E R 9
(32) XVTRs Form

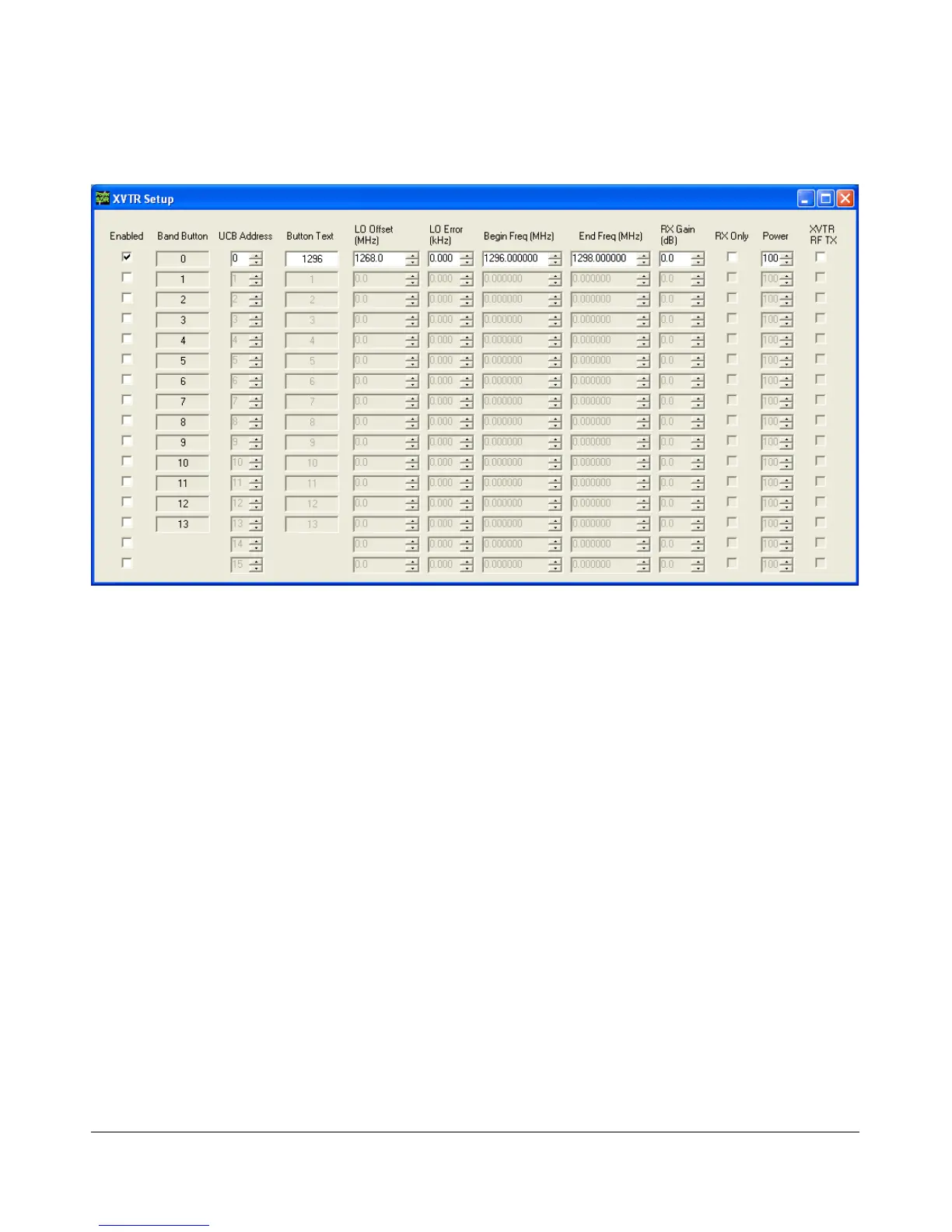

Figure 127: XVTR Setup Form
The XVTR (transverters) Setup Form allows the user to configure up to 16 external transverters for use with
the PowerSDR software.
 Enabled: Enables that particular Band Button on the front console with the options selected.
 Band Button: Band button to use for the particular transverter that is being configured.
 UCB Address: Used to set the X2 port for switching the external device (or a relay that controls the
external device).
 Button Text: The text that will be shown on the Band Button.
 LO Offset (MHz): The difference between the transverter low frequency and the IF frequency. For
example, on 2m, you might use 144-28MHz = 116.0.
 LO Error (kHz): This setting allows the user to correct for any error in the transverter’s oscillator.
 Begin Frequency (MHz): The lower frequency bound for the transverter.
 End Frequency (MHz): The upper frequency bound for the transverter.
 RX Gain (dB): Amount of gain to apply to the incoming signals to compensate for gain within the
transverter.
