S E T U P F O R M C H A P T E R 8
Calibration Sub-Tab

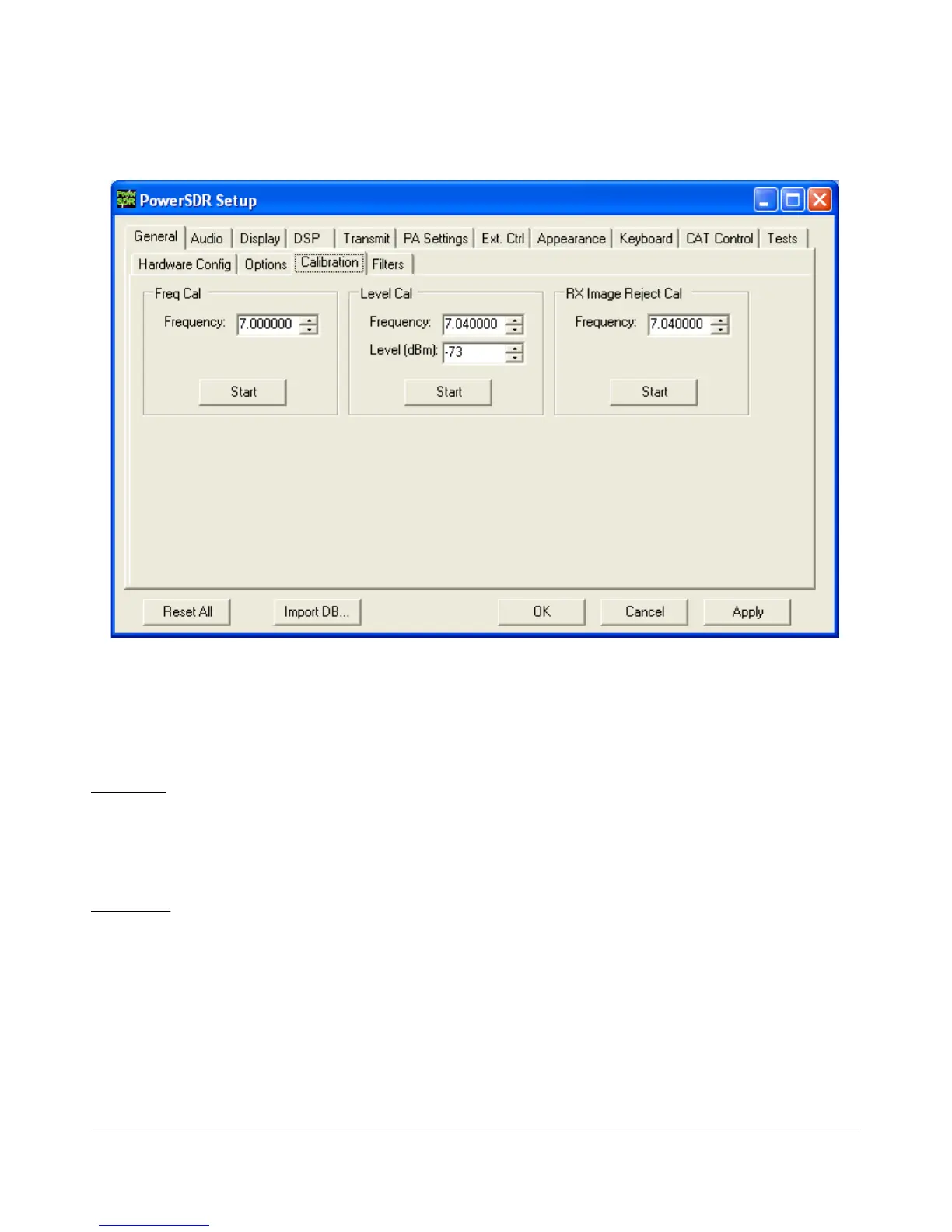

Figure 64: Setup Form - General Tab, Calibration Sub-Tab
The calibration section contains controls that are used to setup and start various calibration routines. For
more information on calibrating, refer to the section called PowerSDR Calibration in the previous Software
Installation & Setup chapter.
Freq Cal
Used to calibrate the frequency of the 200MHz oscillator in the SDR-1000. Enter the frequency of the
signal source used for calibration in the control provided. The signal source can be a signal generator or a
signal like WWV. Click the Start button to run the calibration.
Level Cal
Used to calibrate the power level in dBm for the display and the multimeter. Enter the frequency and level
of the signal source used for calibration. The more accurate the signal source, the more accurate the display
and multimeter will be. The multimeter is currently accurate with respect to the source to 0.1 dBm. Click
the Start button to run the calibration.
[The rest of this page has been left blank intentionally]
