O P E R A T I O N C H A P T E R 1 0
the last detected input and when the radio will switch back to receive (preferably higher than
250ms).
3. If using the sidetone from the internal keyer, select the settings for CW Pitch. Select the settings for
Weight and Ramp as desired (refer to the Keyer Sub-Tab section of the preceding Setup Form
chapter for more detail).
4. If not using Semi Break In, click MOX (16) on the Front Console and begin transmitting using
your external keyer. If using Semi Break In, simply begin transmitting to key the radio If Disable
Monitor is unchecked, you should hear the side tone. Verify with the TX Meter (4) set to Fwd
Pwr that there is forward power.
5. You are now ready to begin a QSO. If a 50 ohm dummy load was connected, connect an antenna in
its place. Tune to the desired frequency using one of the methods outlined in the Tuning Methods
section above. Select either CWL or CWU (6) and proceed with the QSO.
CWX Form
If you wish to send CW automatically, click on CWX (33) on the Front Console menu to open the
CWX Form shown below. (Refer to the CWX Form section of the preceding Operating Forms chapter
for more detail on how to use this form).

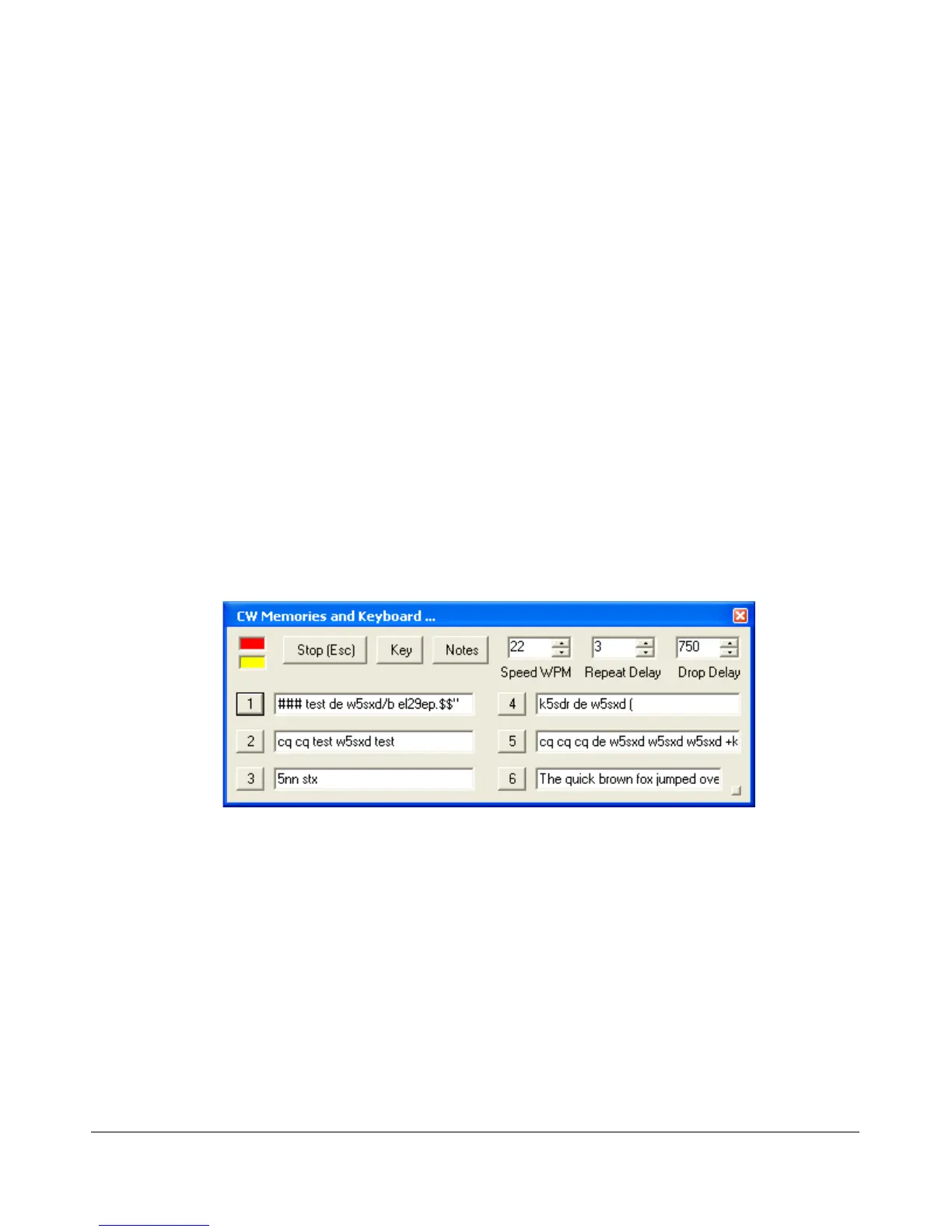

Figure 134: CWX Form
1. Click on one of the numbered buttons to start transmitting the corresponding CW sequence.
Verify with the TX Meter (4) set to Fwd Pwr that there is forward power.
2. You are now ready to begin a QSO. If a 50 ohm dummy load was connected, connect an
antenna in its place. Tune to the desired frequency using one of the methods outlined in the
Tuning Methods section above. Select either CWL or CWU (6) and proceed with the QSO.
[The rest of this page has been left blank intentionally]
140 ď›™FlexRadio Systems
