F R O N T C O N S O L E C H A P T E R 7
(6) Mode Selection

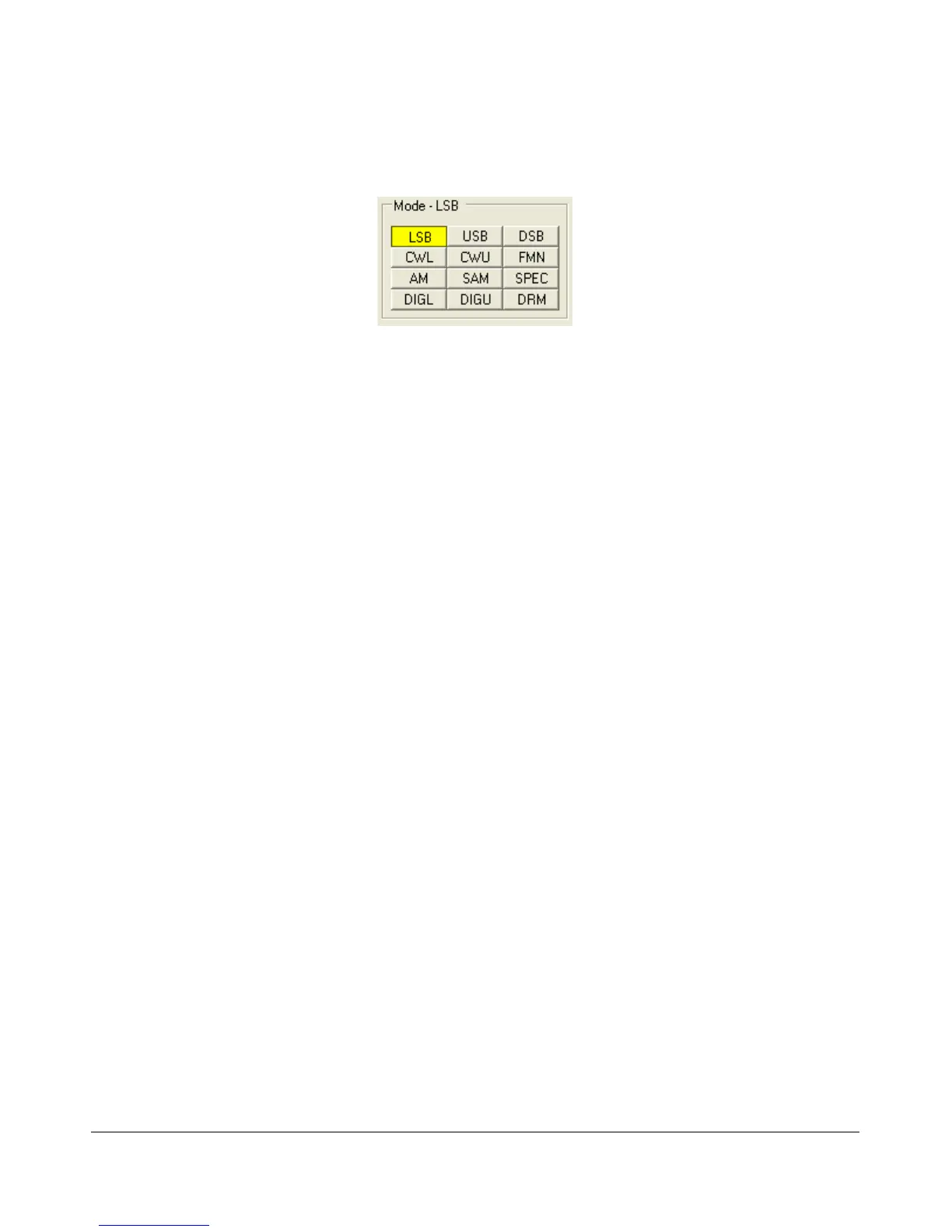

Figure 31: Mode Selection
The Mode Selection controls allow you to change the selected demodulation routine. Changing modes will
select the last frequency and filter used for that mode. Additionally, it will display the (configurable) filter
settings available for that mode as well as display the appropriate mode specific controls on the front
console (see below). Following is a list of the available modes:
LSB: Lower Side Band
USB: Upper Side Band
DSB: Double Side Band
CWL: CW Lower Side Band
CWU: CW Upper Side Band
FMN: Frequency Modulation (FM) Narrow
AM: Amplitude Modulation
SAM: Synchronous (PLL) Amplitude Modulation
SPEC: Spectrum mode (DC IF, max bandwidth determined by your selected sound card sampling
rate)
DIGL: Digital Lower Side Band (Enables VAC if VAC Auto Enable is engaged)
DIGU: Digital Upper Side Band (Enables VAC if VAC Auto Enable is engaged)
DRM: Digital Radio Mondiale (requires licensed external demodulator software not available from
FlexRadio Systems; Enables VAC if VAC Auto Enable is engaged)
Hotkeys are available in the Setup-Form, Keyboard Tab to cycle through the various modes using the
keyboard.
[The rest of this page has been left blank intentionally]
44 FlexRadio Systems
