figure) located at the center of the right and left sides of the board at the
same time.

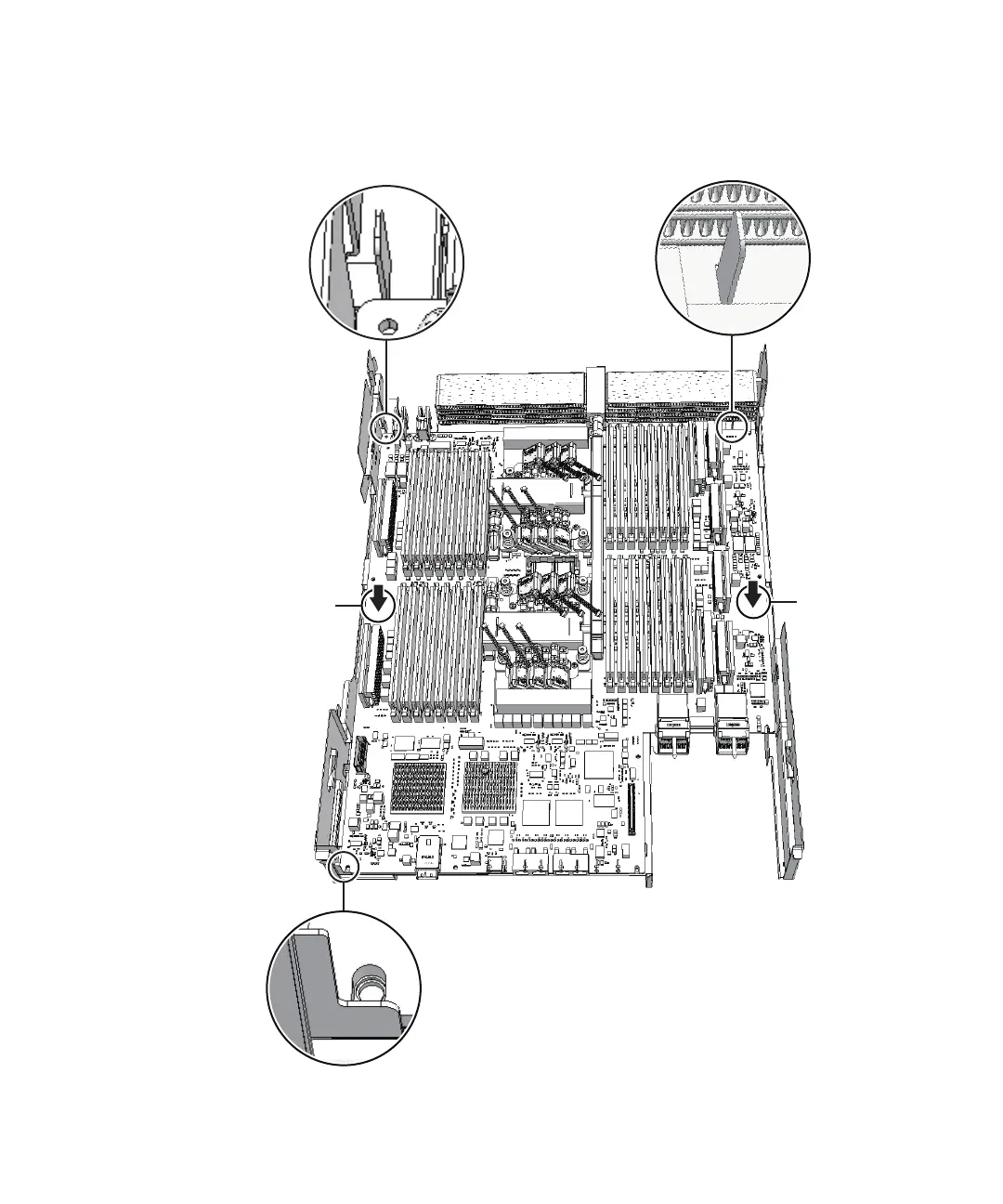

Figure 9-48
Installing the CPU memory unit board (for the SPARC M10-4/M10-4S
with a FRAME-B CPU memory unit)
17.
Fix the CPU memory unit board with screws.
-
For the SPARC M10-4/M10-4S with a
FRAME-A CPU memory unit
Chapter 9 Maintaining the CPU Memory Unit/Memory 227
