"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
▶
"Removing the fan holder" on page 60.
Removing the defective SAS expander board
▶
Remove the SAS expander board holder, see "Removing the SAS
expander board holder" on page 150.

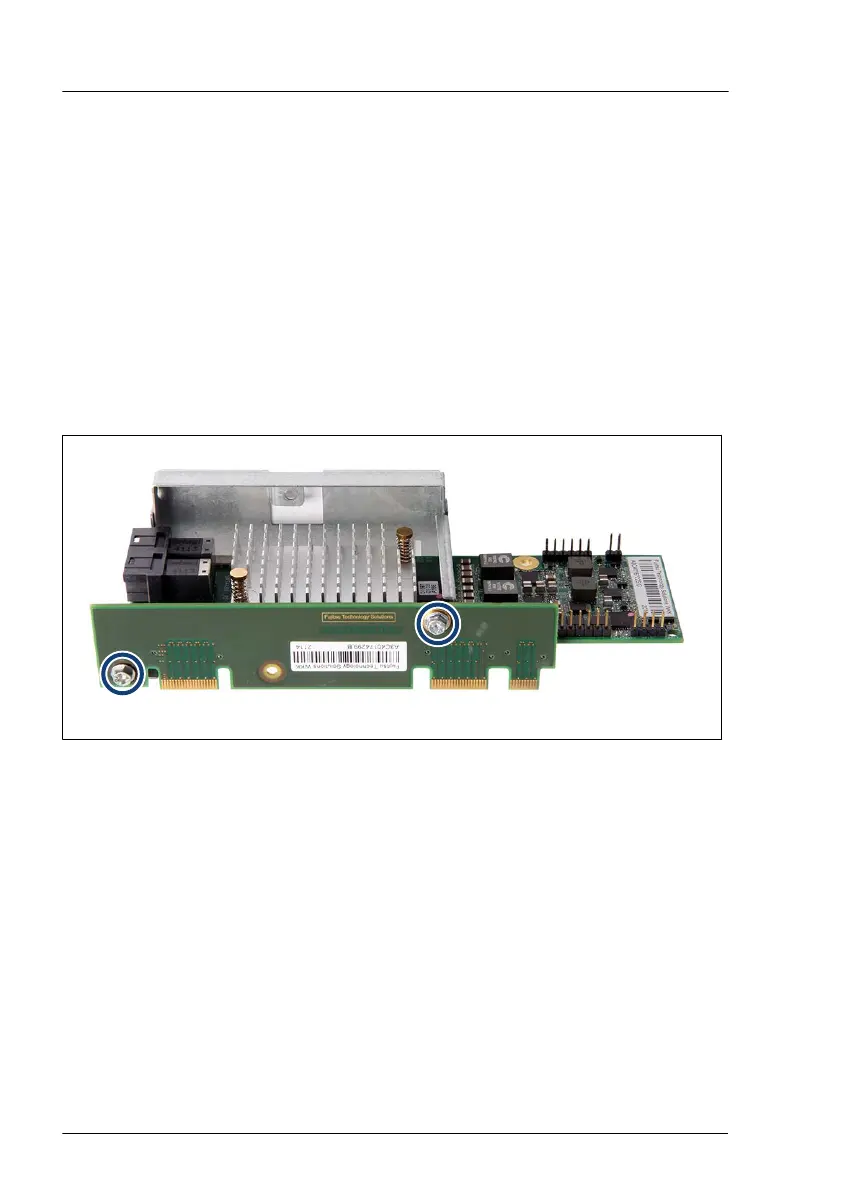

Figure 71: Removing the installed SAS expander board (A)
▶
Remove the two screws (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
158 Upgrade and Maintenance Manual RX2520 M5
