Installing the new connector card

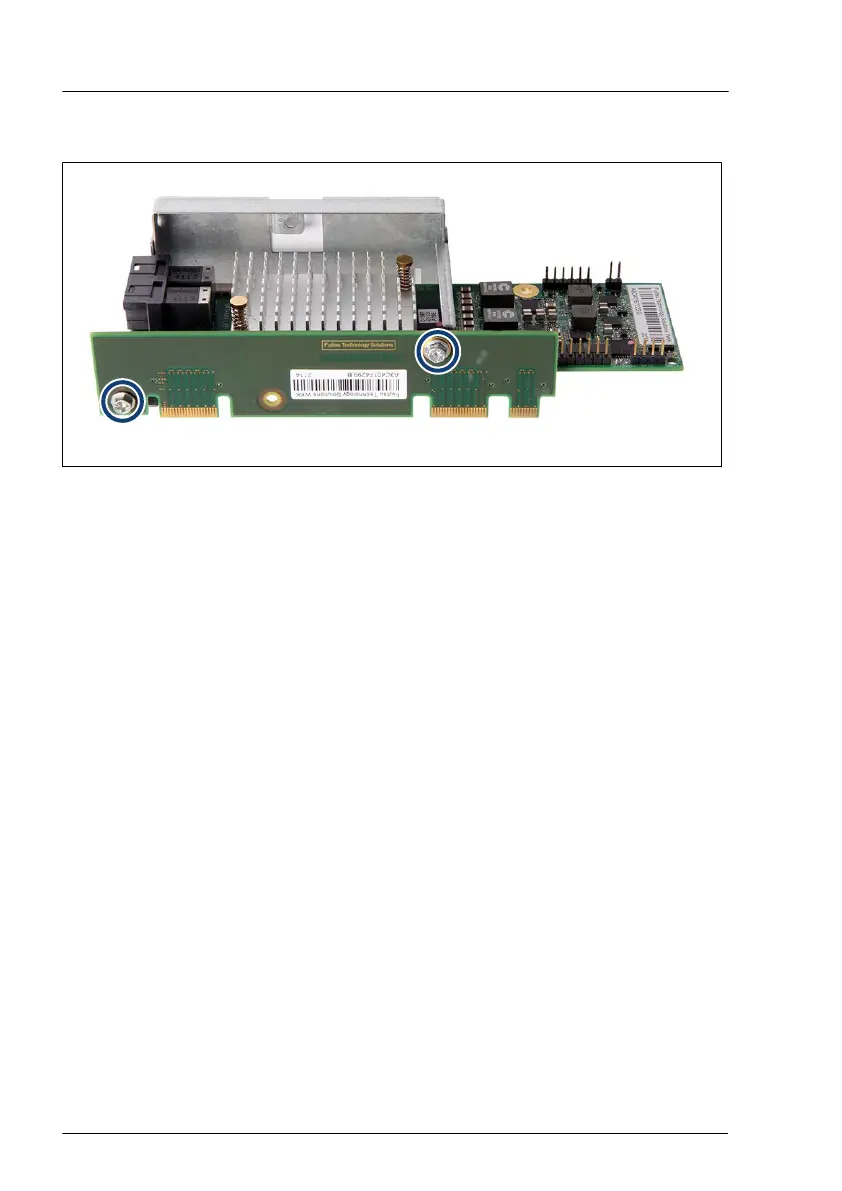

Figure 78: Installing the connector card
▶
Match the two screw holes of the connector card with the holes in the SAS
expander board holder
.
▶
Fasten the mounted SAS expander board with two screws on the SAS
expander board holder (see circles).
Installing the SAS expander board holder
▶
Install the SAS expander board holder
, see "Installing the SAS expander
board holder" on page 155.
Concluding steps
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
Hard disk drive (HDD) / solid state disk (SSD)
164 Upgrade and Maintenance Manual RX2520 M5
