Fujitsu PRIMERGY RX2520 M5

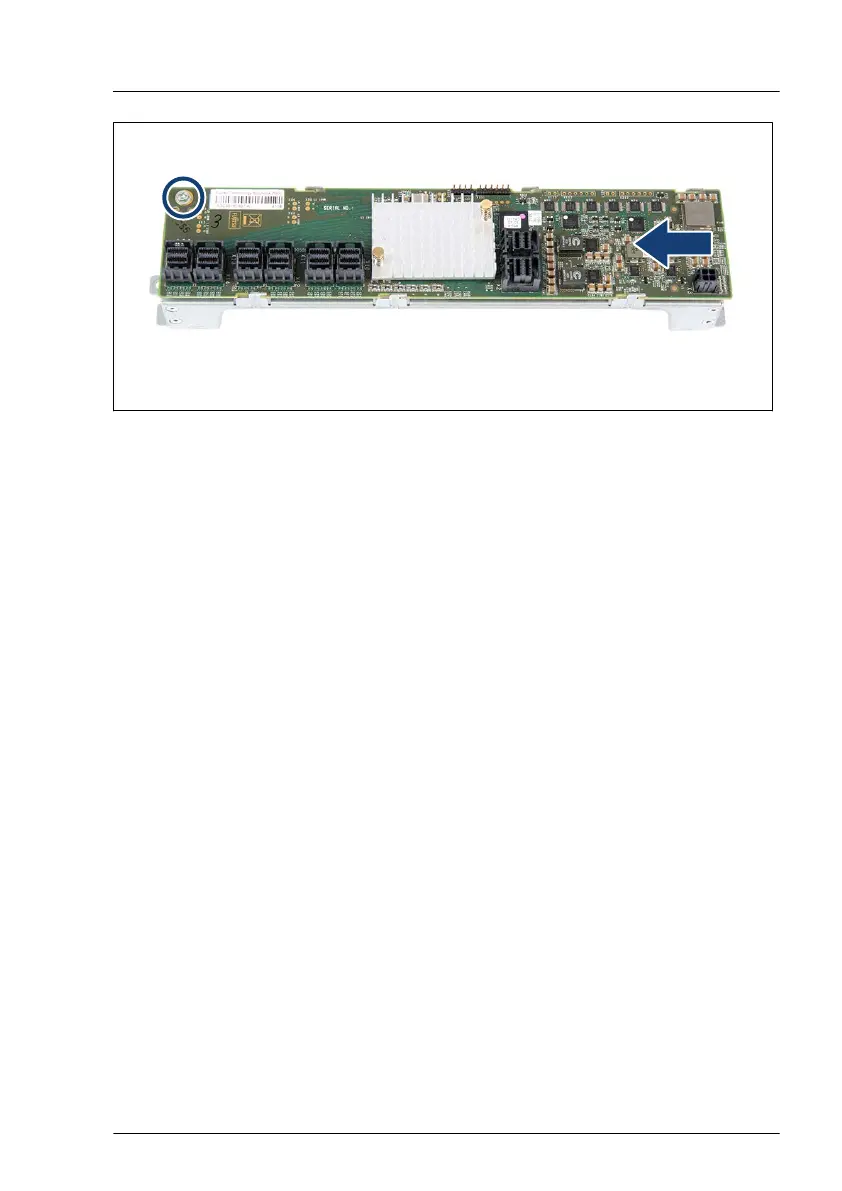

Figure 102: Installing the SAS expander board
▶
Push the SAS expander board in the direction of the arrow.
▶
Fasten the SAS expander board with one screw M3 x 2.5 mm (see circle).
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 195
