Carefully insert the expansion card into the desired PCIe slot and press
down firmly until it is completely seated in the slot.
▶
Fasten the expansion card with the screw (see circle).
▶
If applicable, install SFP+ transceiver modules into the expansion card, see
"Installing SFP+ transceiver modules" on page 221.
▶
If applicable, connect internal cables to the expansion card.
For the cable plan, see "Appendix B" on page 463.
Example: Configuration with one PRAID EP5x0i in slot 1

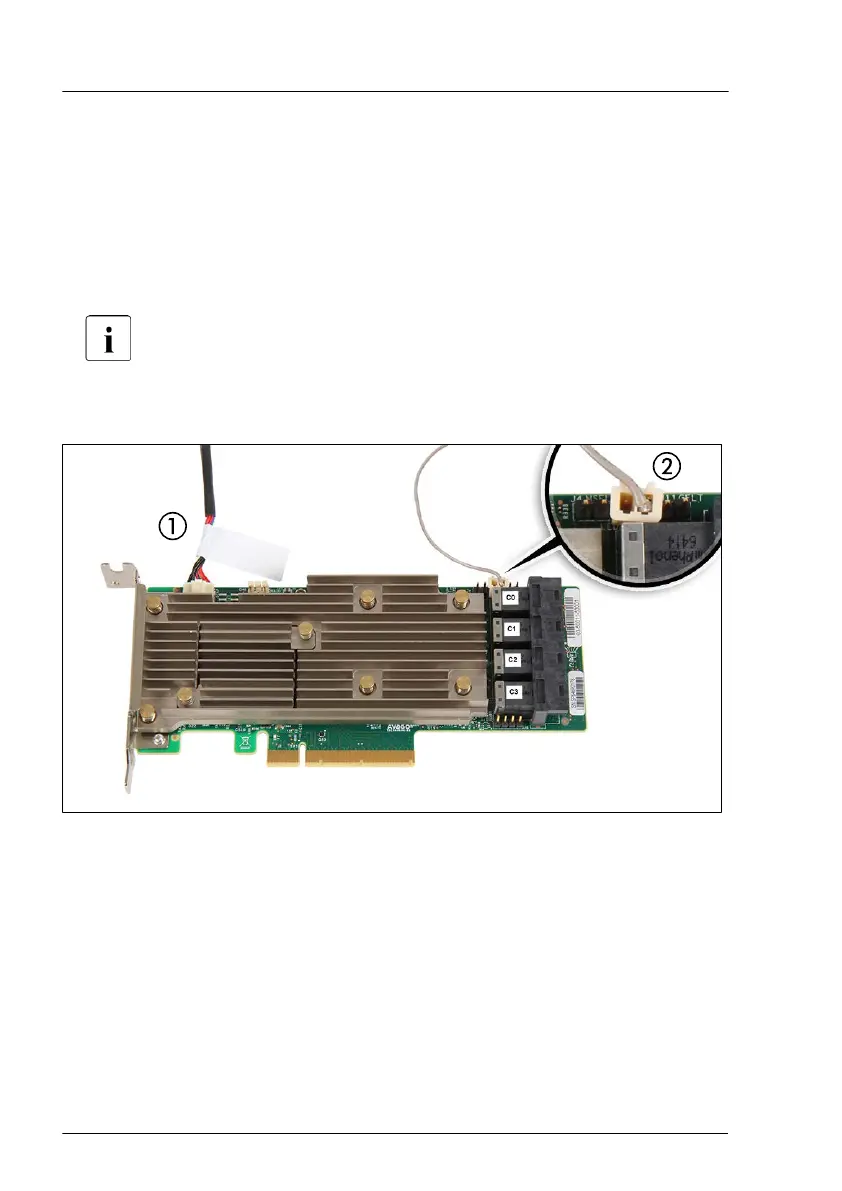

Figure 129: Connecting cables - PRAID EP5x0i
▶
Connect the cables to the PRAID EP5x0i:
1 If applicable, FBU cable
2 HDD LED cable
▶
Connect the corresponding SAS cables.
Expansion cards and backup units
232 Upgrade and Maintenance Manual RX2520 M5
