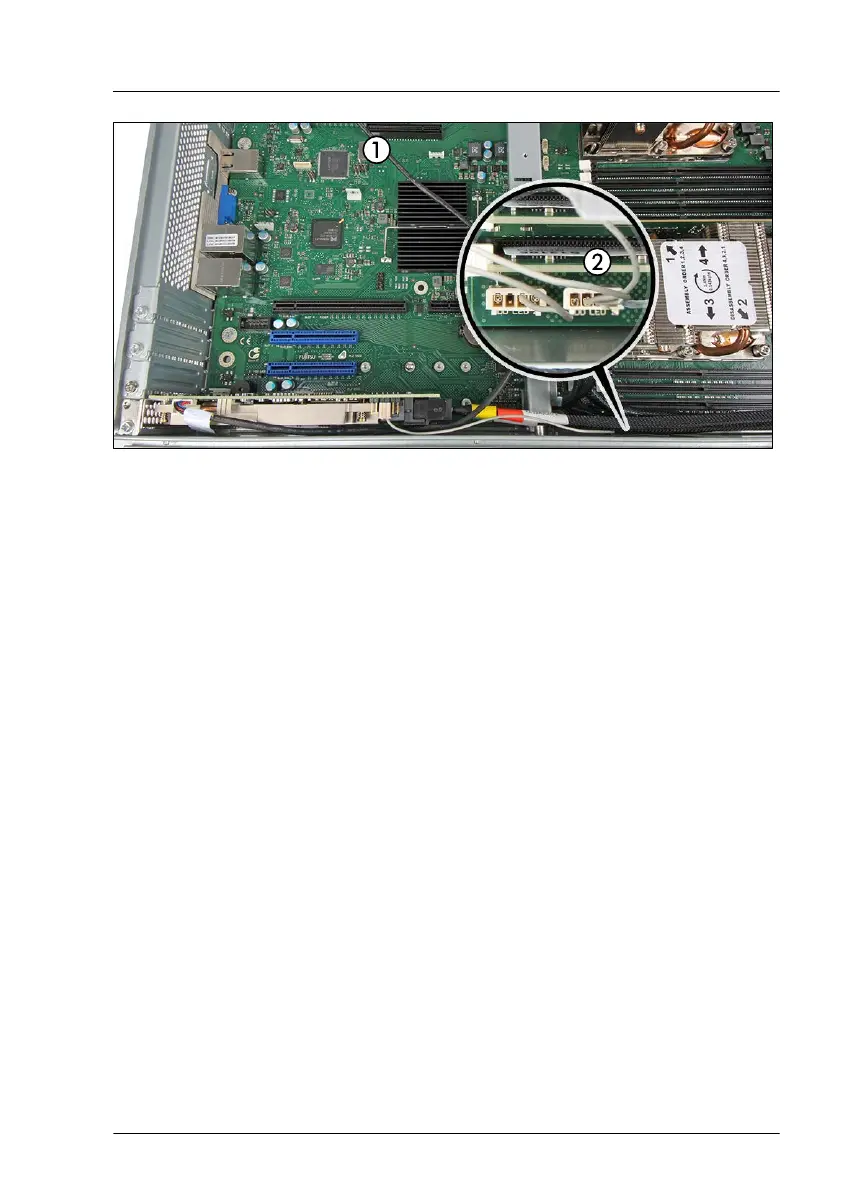

Figure 130: PRAID EP5x0i in slot 1 in a 3.5-inch HDD chassis
▶
If applicable, connect the FBU cable to the FBU (1).
▶
Connect the HDD LED cable to connector "HDD LED 1" on the system
board (2).
▶
Connect the SAS cables to the corresponding HDD backplane.
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 233
