Example: Configuration with one Retimer controller

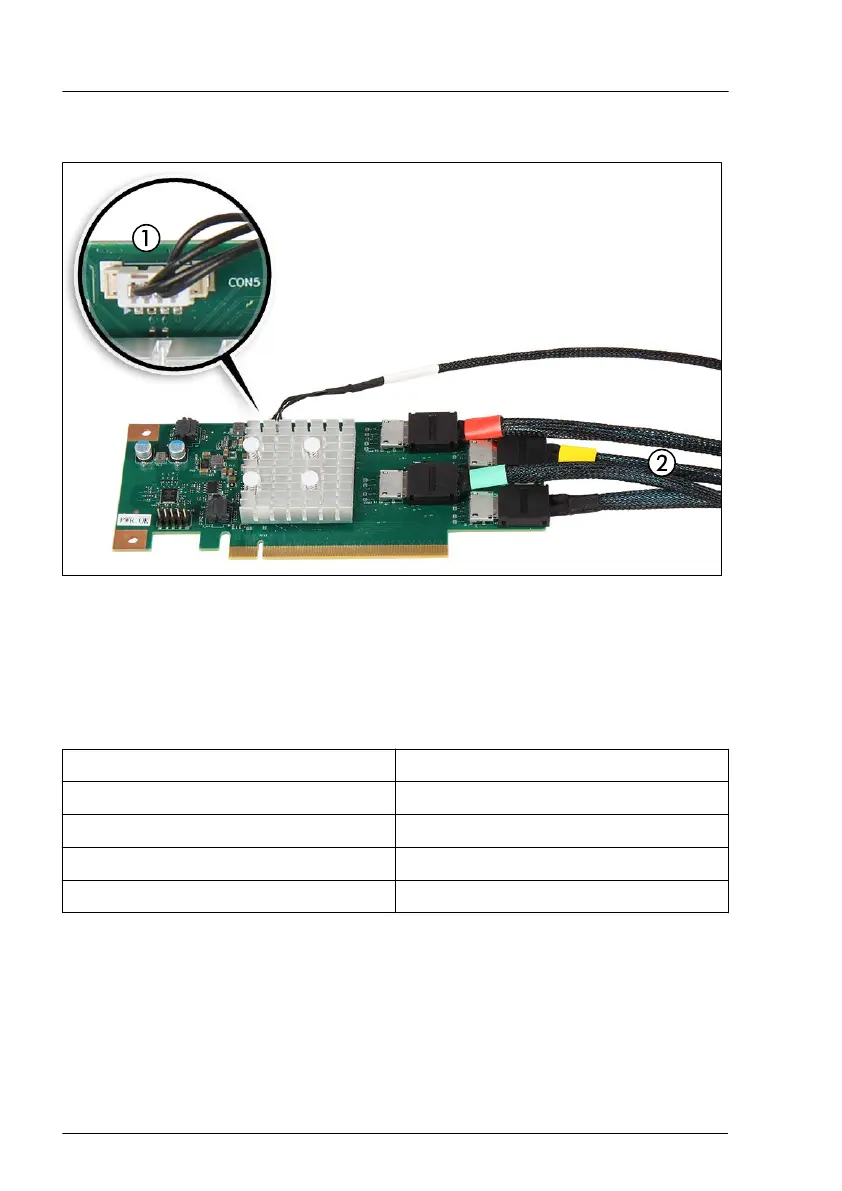

Figure 131: Connecting cables - Retimer controller
▶
Connect the cables to the Retimer controller:
1 VPP cables
2 Color-coded Oculink cables
Color-code of Oculink cable Connector on PCIe SSD backplane
red P0_X1
yellow P1_X2
green P2_X3
black P3_X4
Expansion cards and backup units
234 Upgrade and Maintenance Manual RX2520 M5
