Preliminary steps
▶
"Suspending BitLocker functionality" on page 65
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
▶
"Removing the fan holder" on page 60.
▶
"Removing the front panel cage" on page 347.
Removing the ODD dummy cover

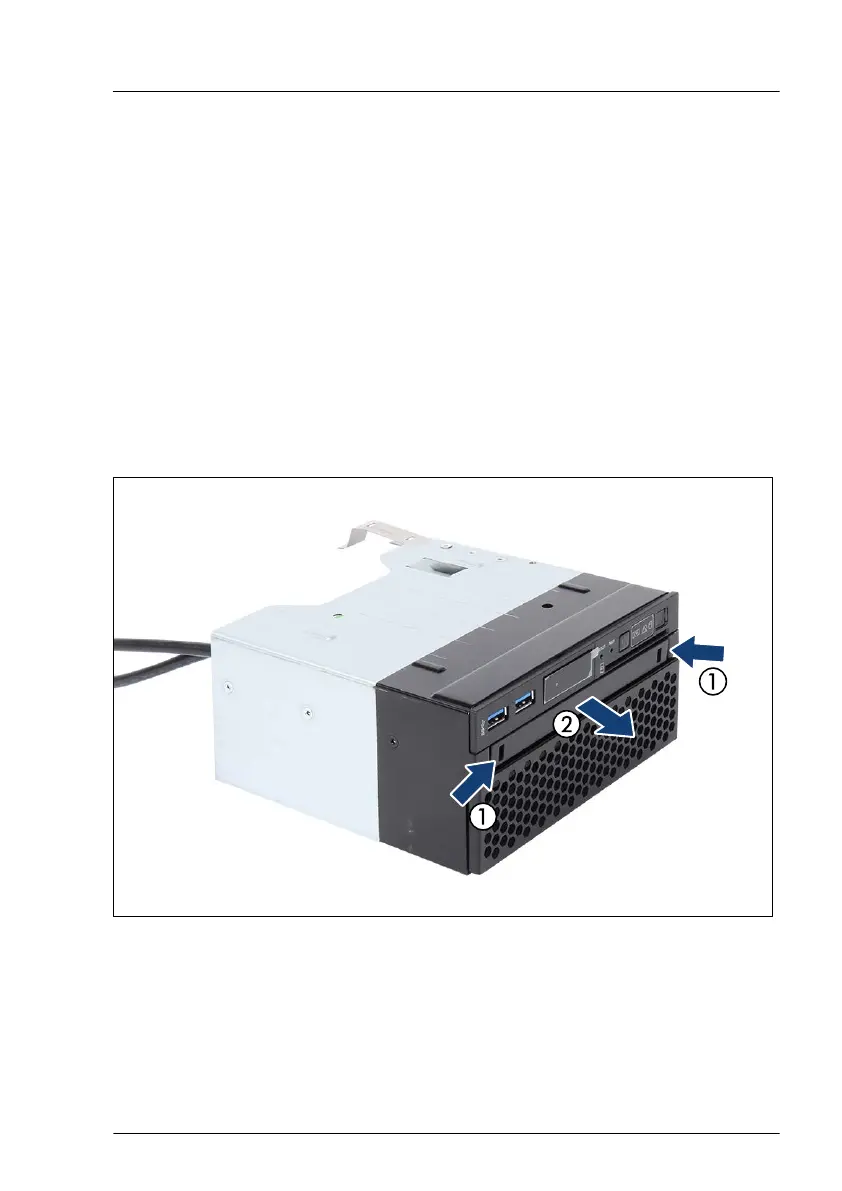

Figure 173: Removing the ODD dummy cover
▶
Unlock the dummy cover (1).
▶
Remove the dummy cover (2).
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 293
