Disconnect the front panel cable and the front USB cable from the system
board.
▶
If applicable, disconnect the cables of the ODD.
To get enough space for disconnecting the ODD SATA cable, remove
the expansion card from slot 4, see "Removing the expansion card"
on page 237
.

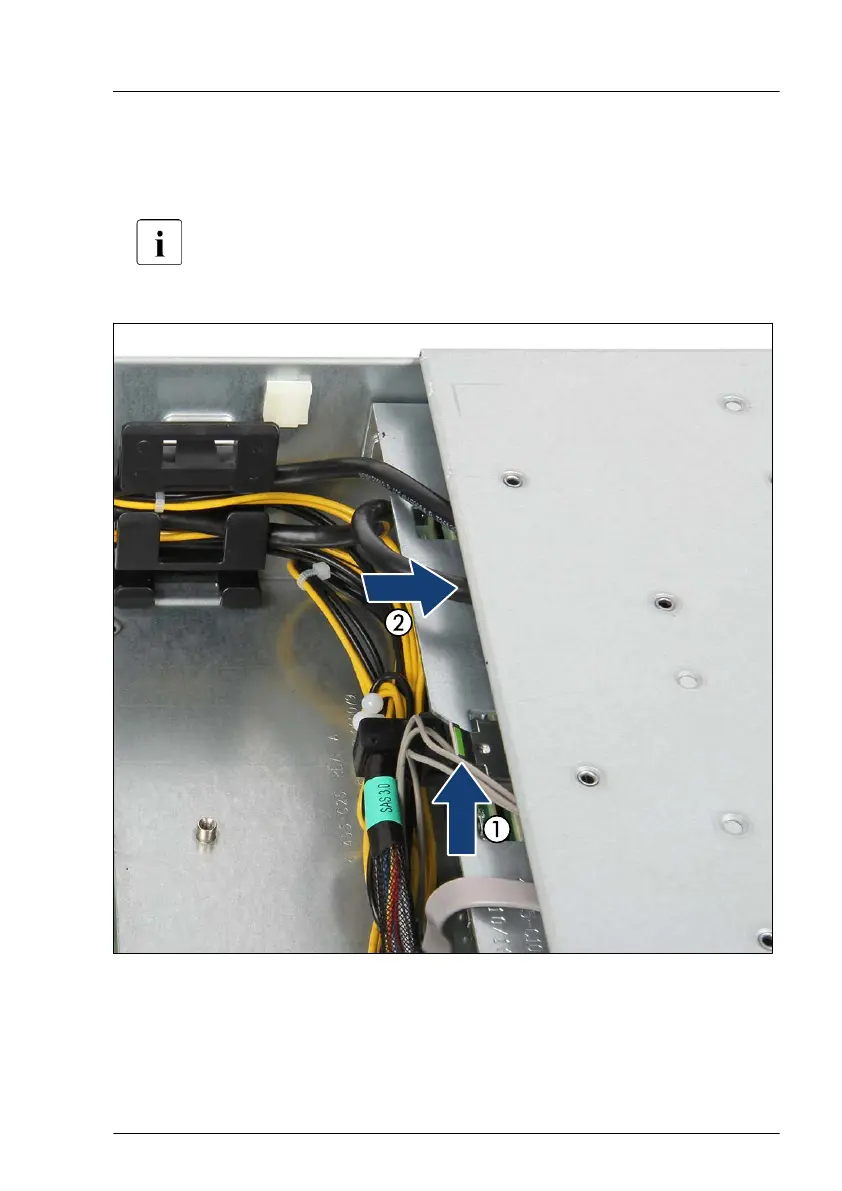

Figure 232: Removing the front panel module
Front panel
RX2520 M5 Upgrade and Maintenance Manual 361
