Installing cables to the front panel module

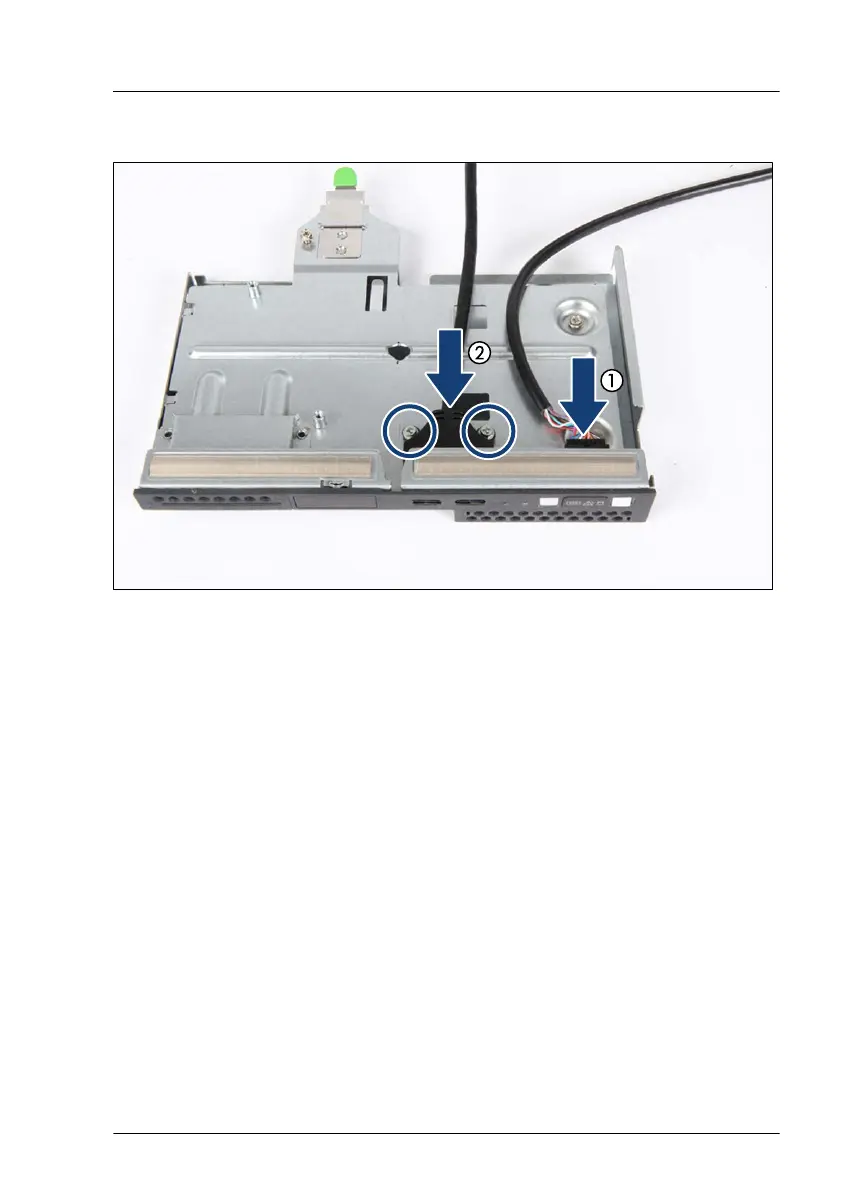

Figure 234: Installing cables to the front panel module
▶
Connect the front panel cable (1).
▶
Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
Installing the front panel module
▶
If applicable, install the ODD, see "Installing the ODD" on page
308.
Front panel
